115POverheadPlumbing
Simple Lasso

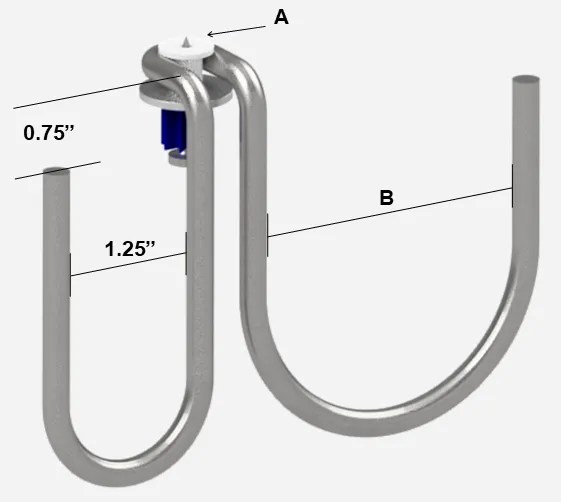

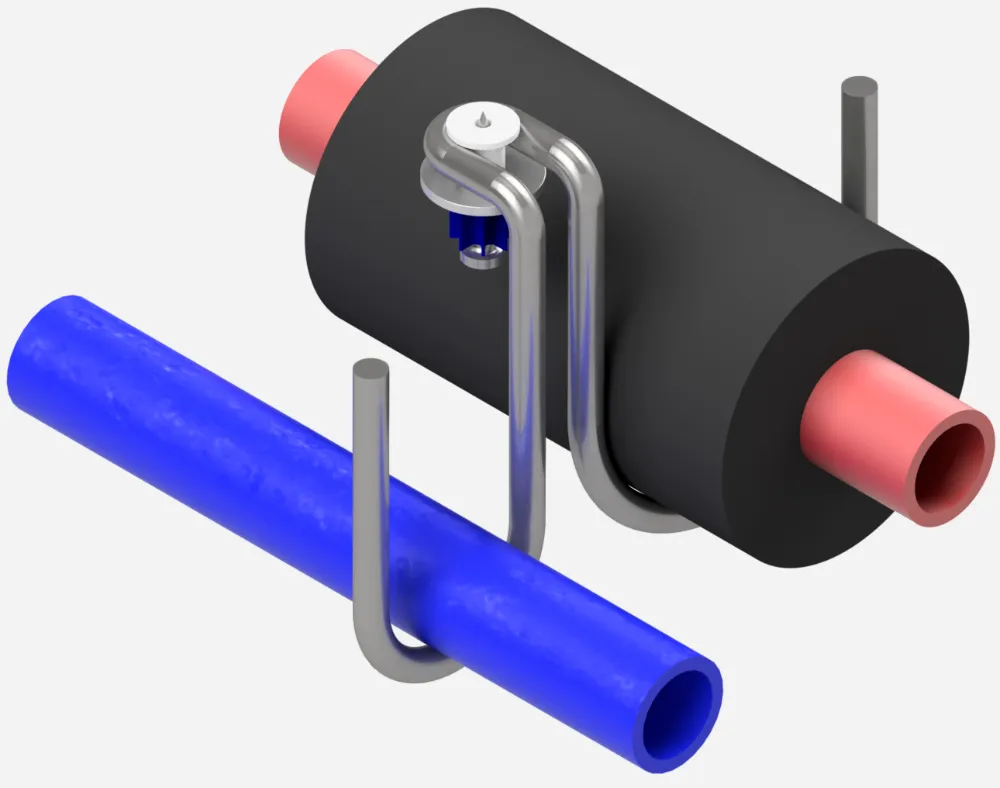

Secures insulated PEX hot and cold lines with one shot; the lasso ID matches the PEX size and insulation thickness selected.
Insulated PEX.
Rated capacity
50 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
5/8 - 3 in.
Lasso ID, set by PEX size and insulation.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Configure
Build the part number
Built to order. Add parts to your list, then request a quote, a submittal package, or both. Pricing follows by reply.
Your part number
115A01B01
Built to order
| Substrate | Fastener | Assembly | Governed by |
|---|---|---|---|
| 4000psi NWC | 275 lbs | 50 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 50 lbs | Support |
Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
From the data sheet
Notes
- Secures both cold and hot insulated PEX piping.
- Designed for demanding high-rise construction.
- Rigid connection to structure; listed for the support of plumbing and mechanical piping under the IPC, UPC, IMC and UMC and their California editions (ICC-ES PMG-1840).
- Finish: zinc plated.
- Support spacing per the applicable plumbing or mechanical code (IPC 308.5, UPC 313.3).
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Drawings not to scale.
