Rod supports
Built to the callout.
Overhead, in-wall, cast-in-place and slab-on-grade supports for electricians, plumbers and pipe fitters. Pick your trade, then the family. Every page matches its Technical Data Sheet.
Browse by trade
What are you hanging?

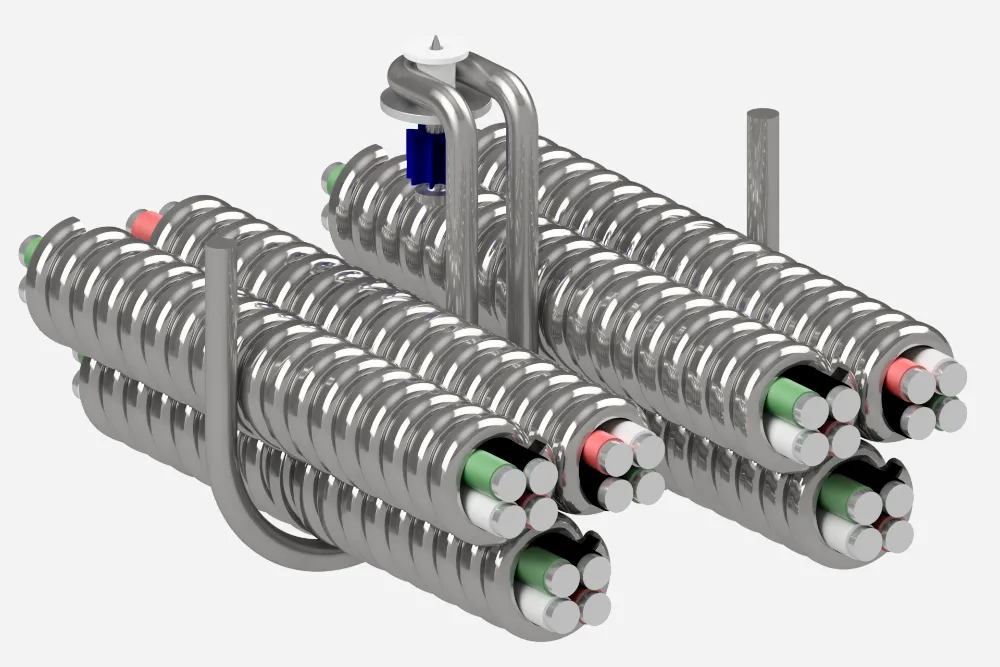

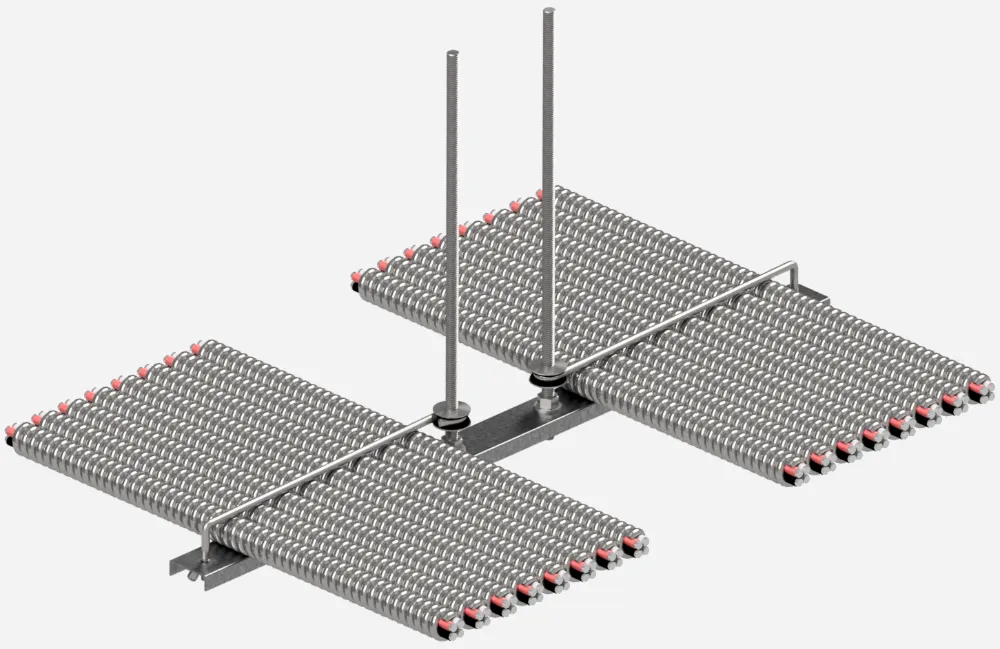

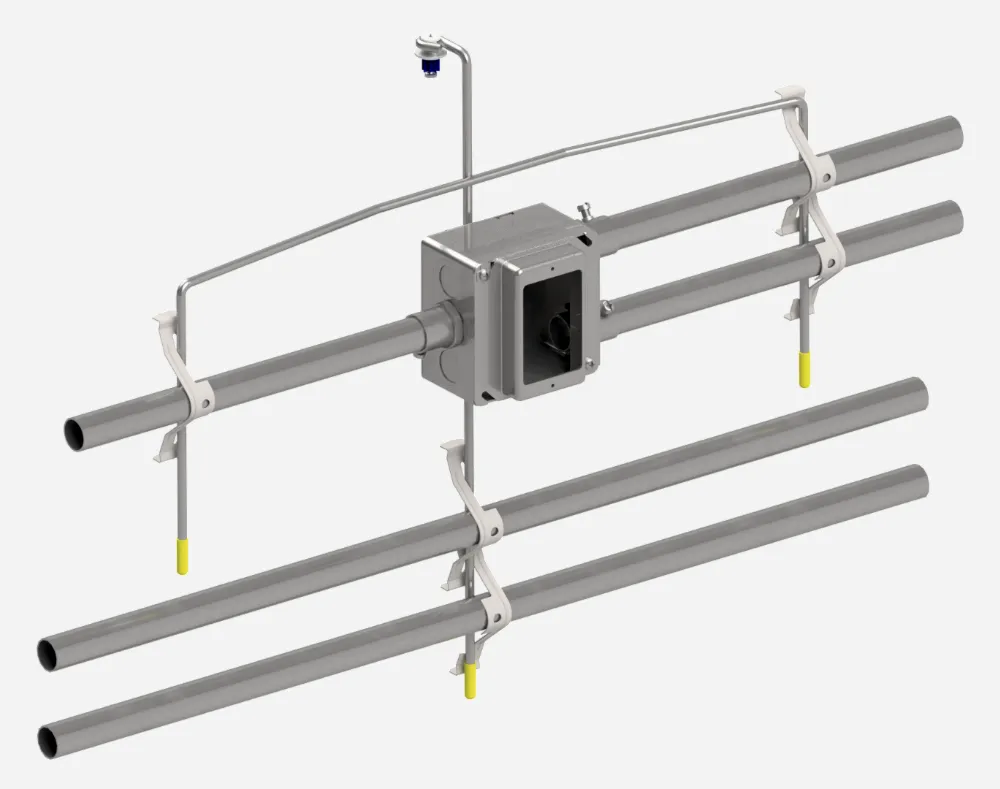

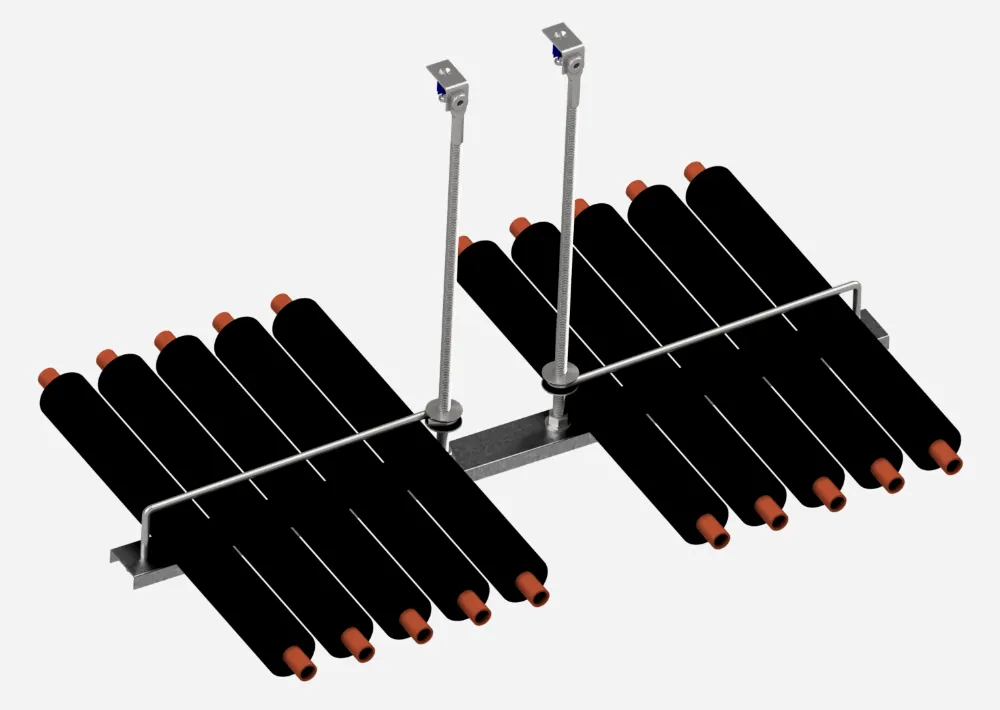

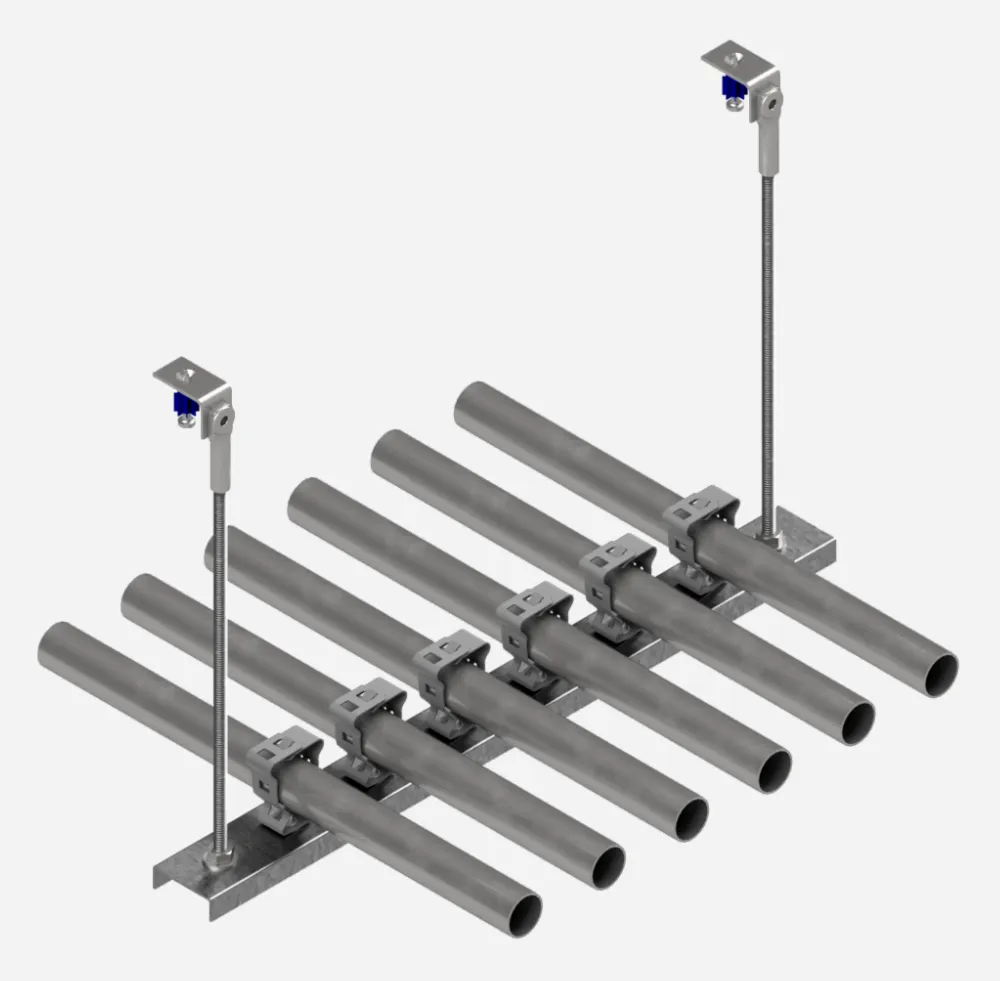

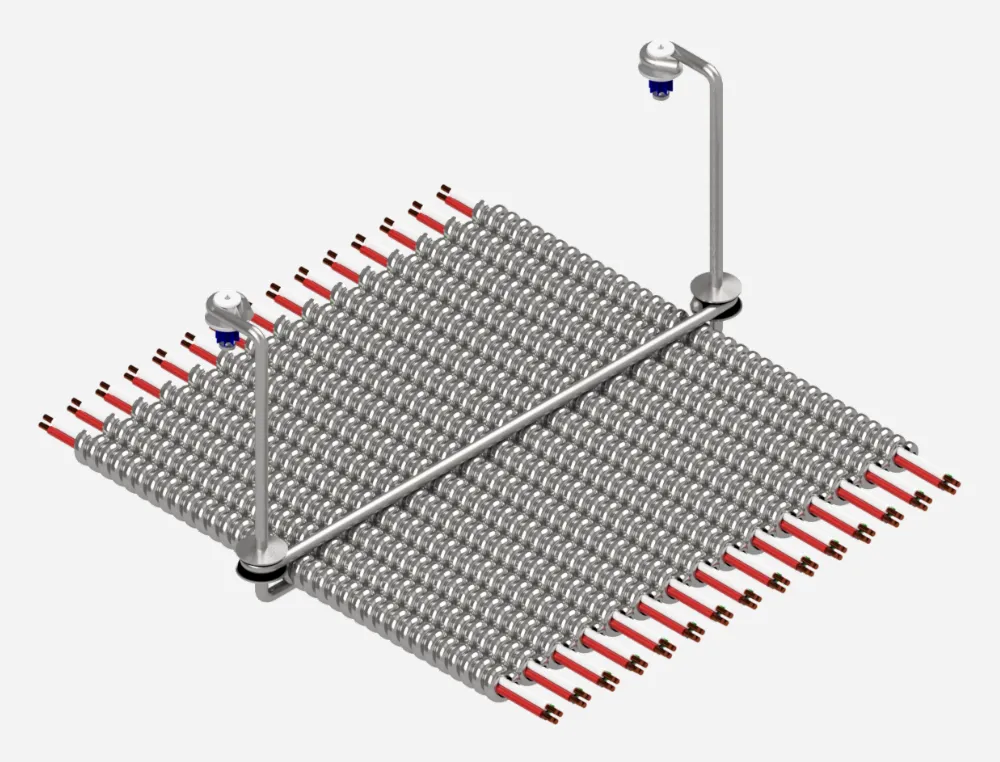

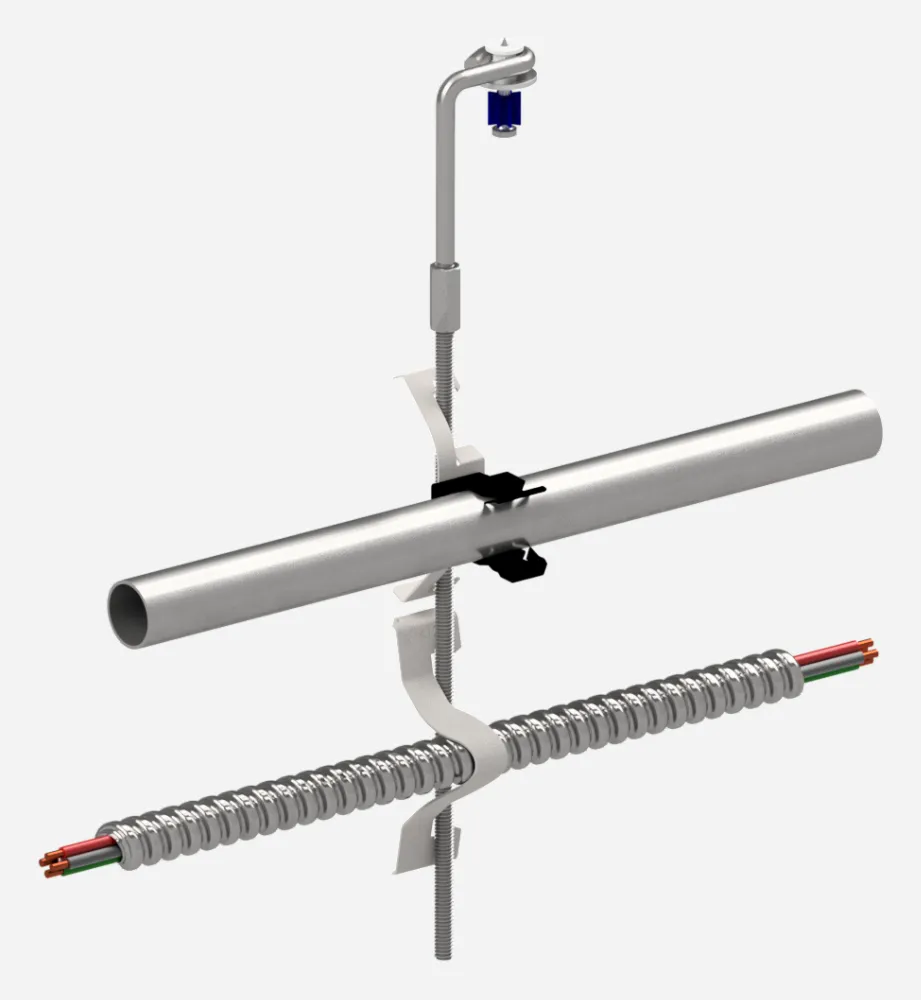

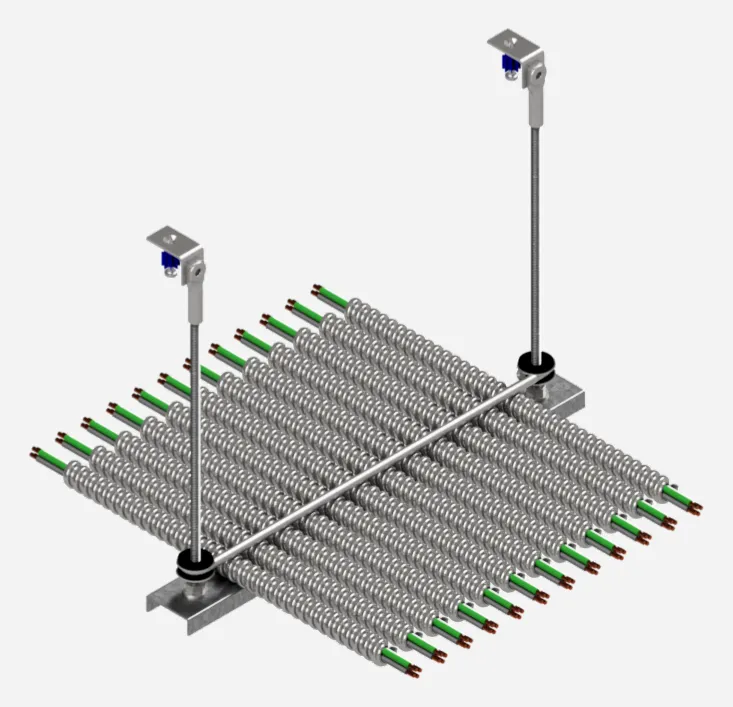

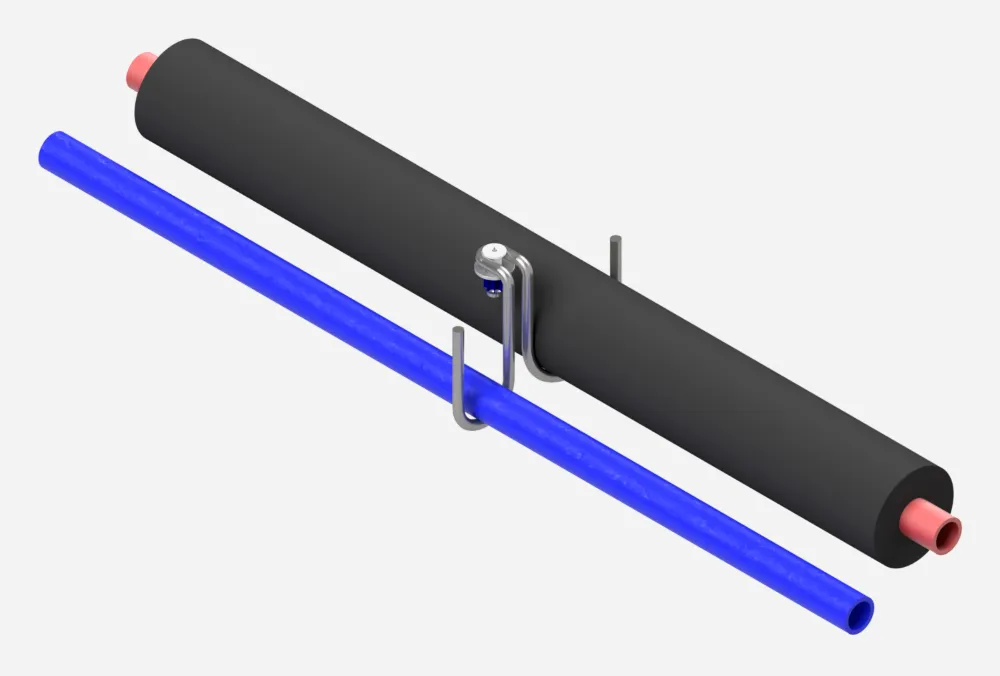

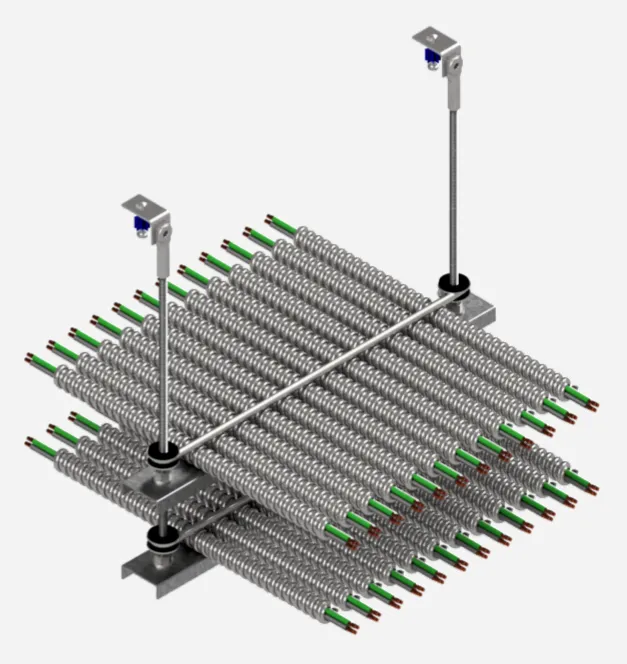

100 to 251

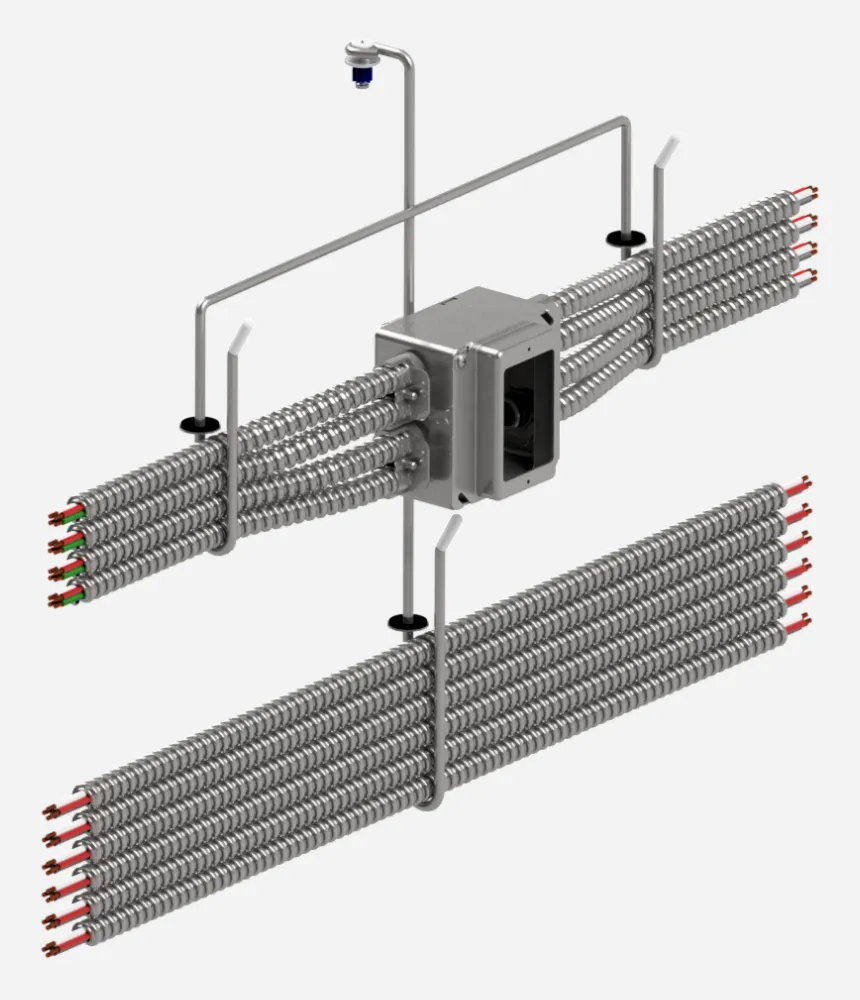

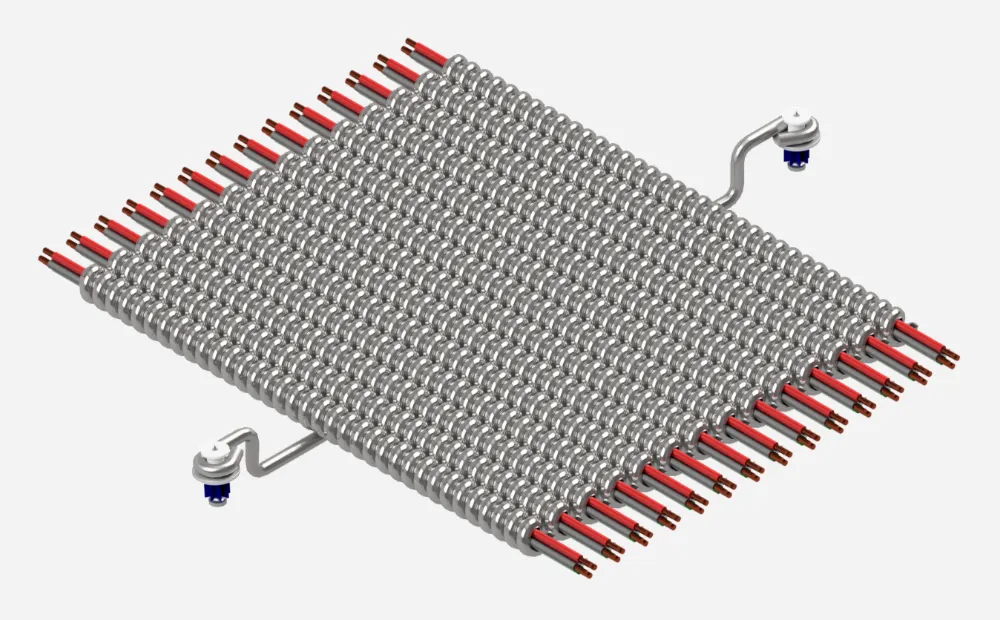

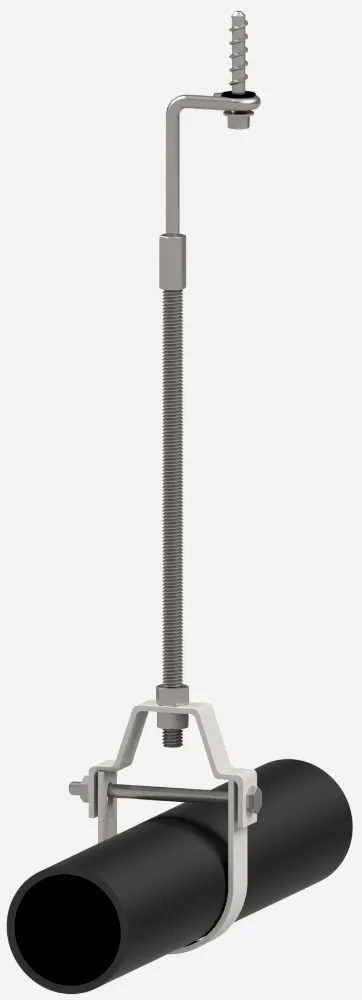

Overhead rod supports

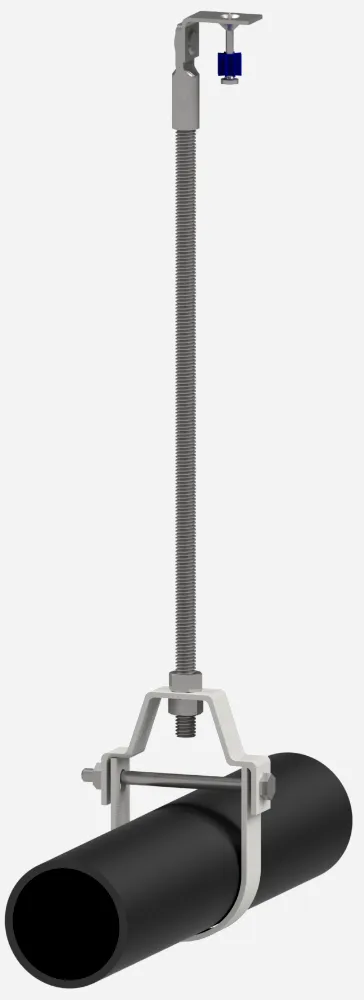

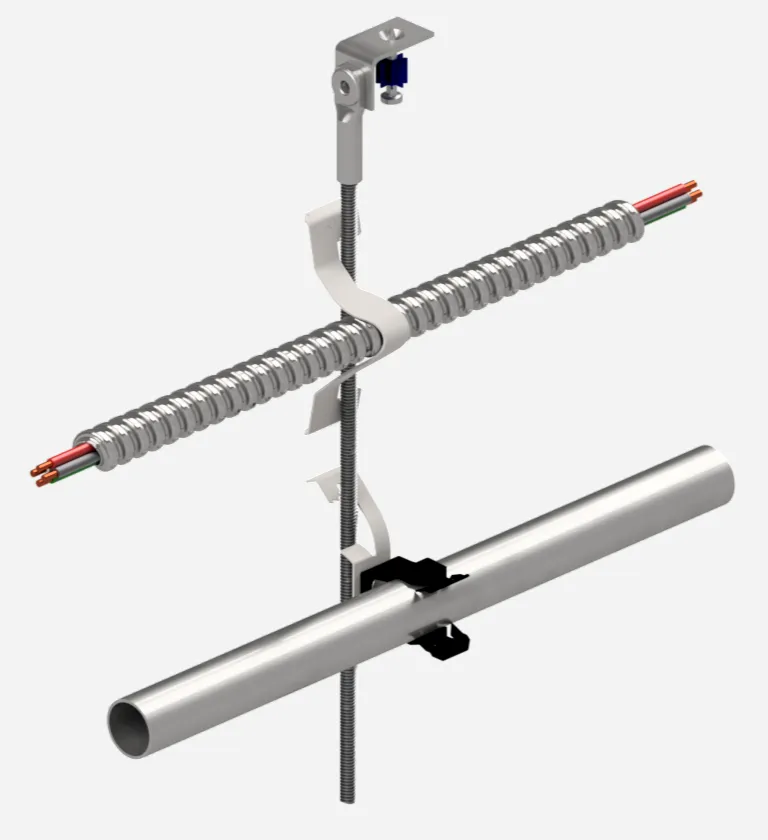

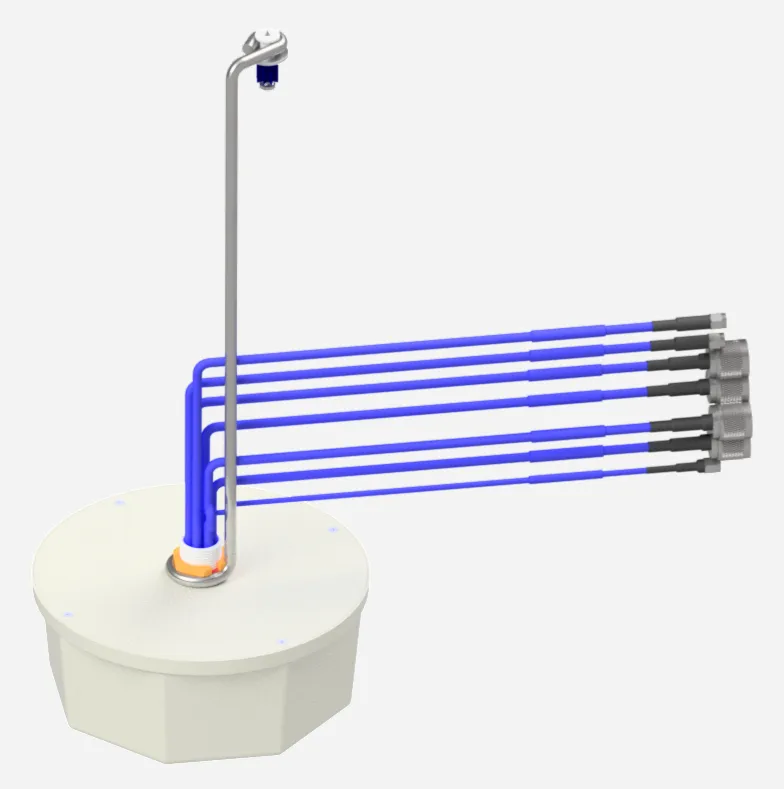

Listed per ICC-ES PMG-1840 Table 1, except the 103 (ICC-ESR-1530 post nut report) and the 251 (SSF published, 90 lbs).

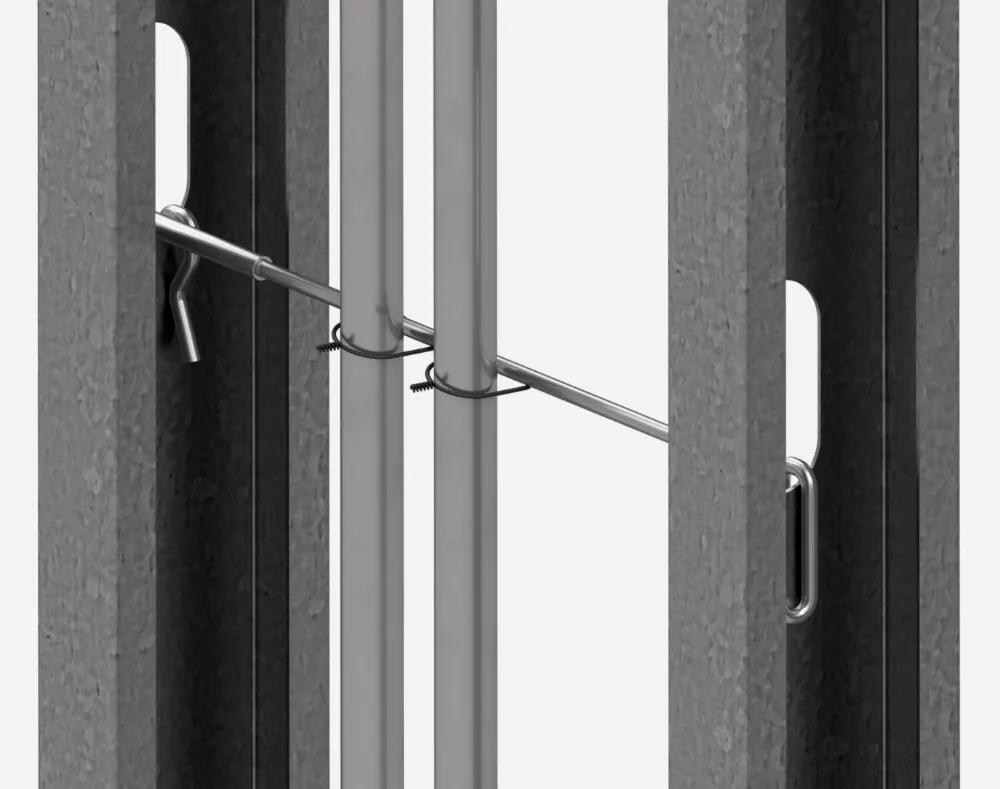

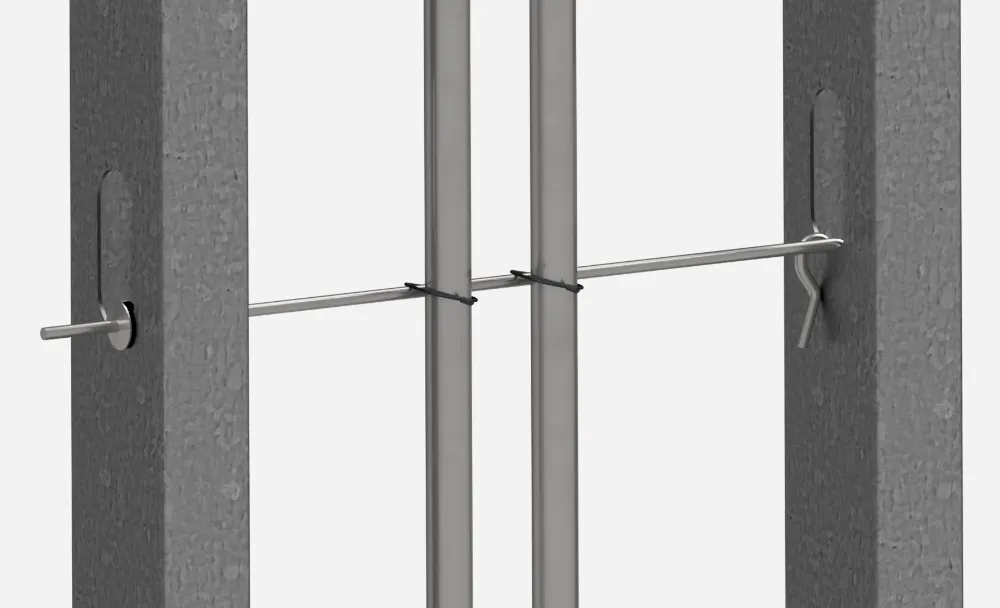

160 to 163

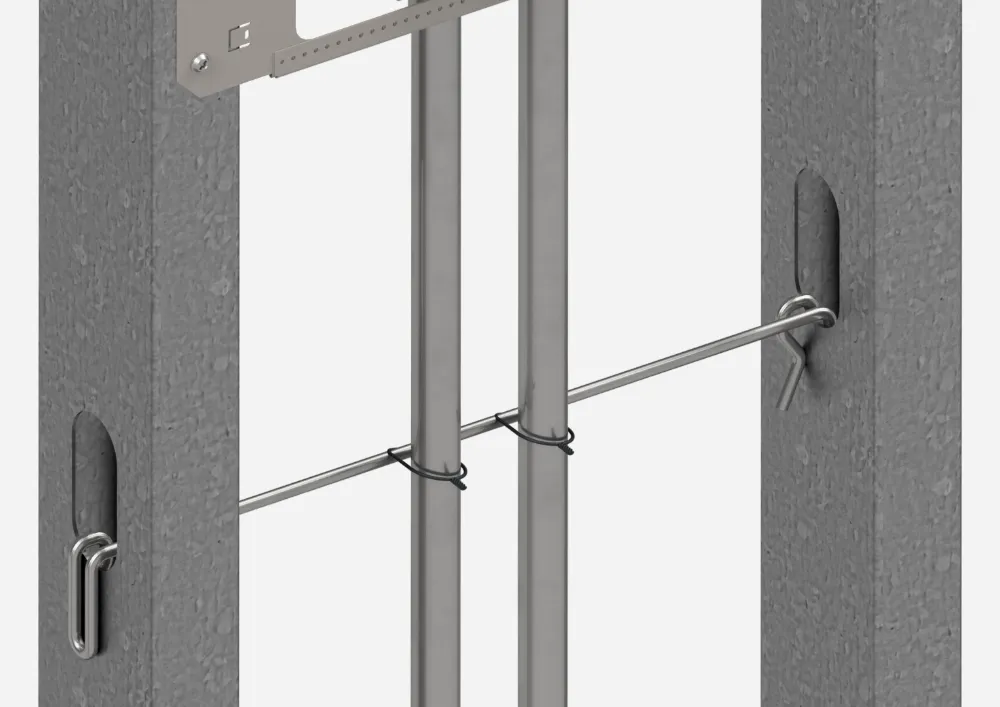

In-wall stud spanners
NEC alignment devices. No load rating.

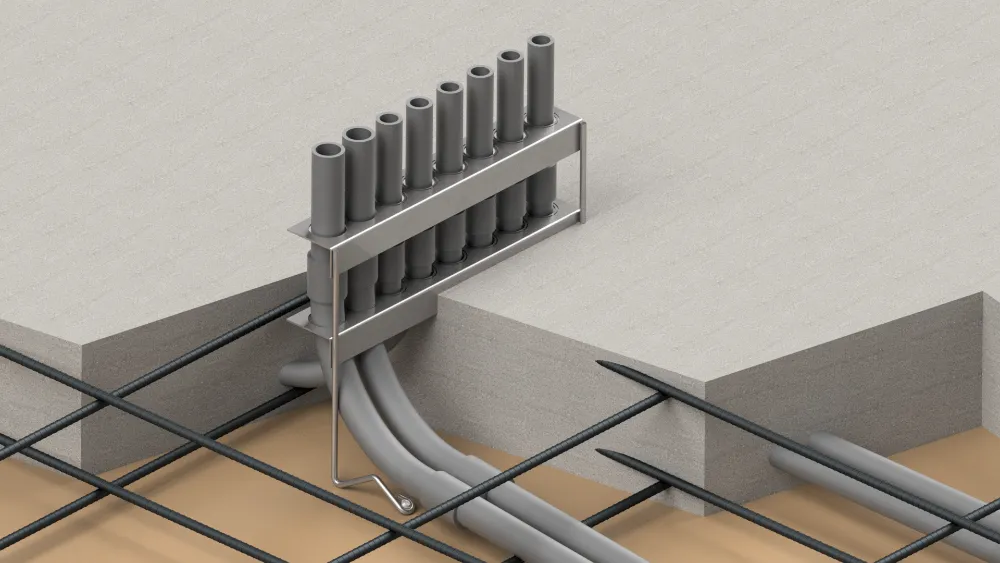

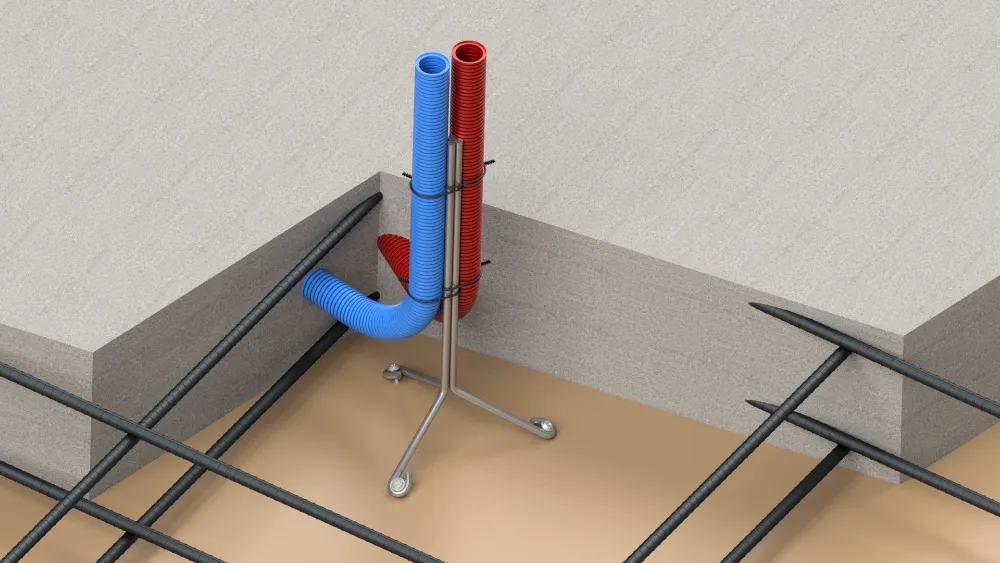

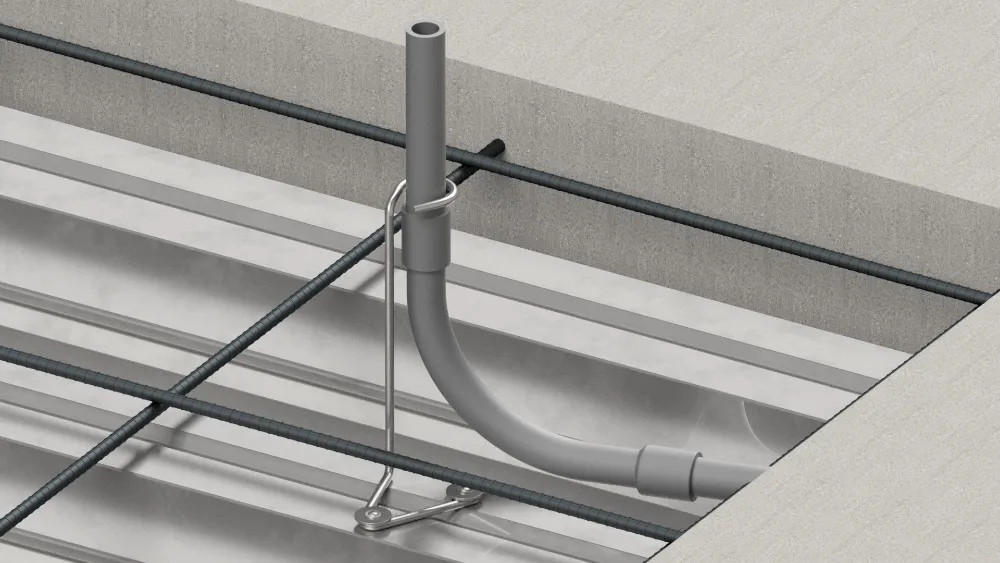

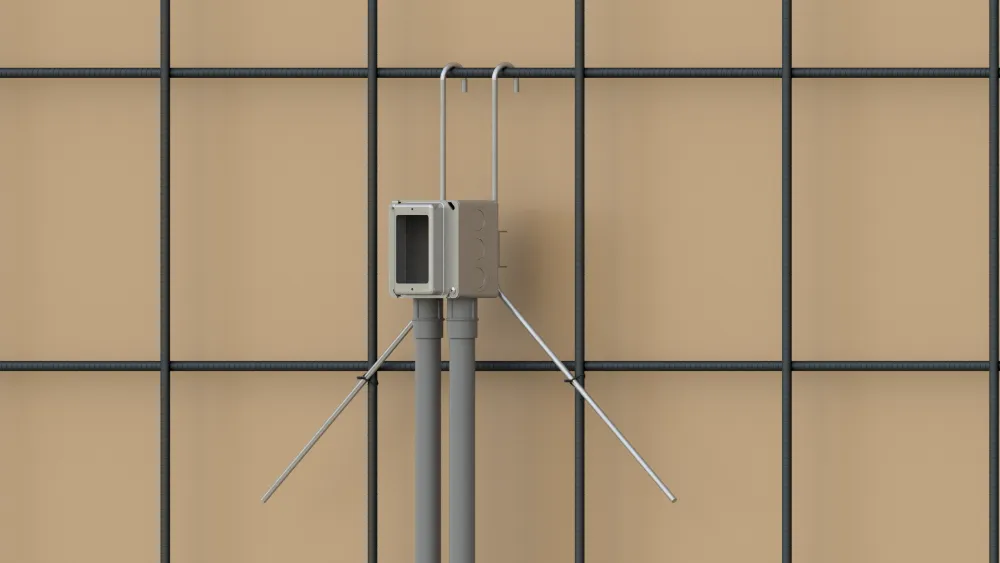

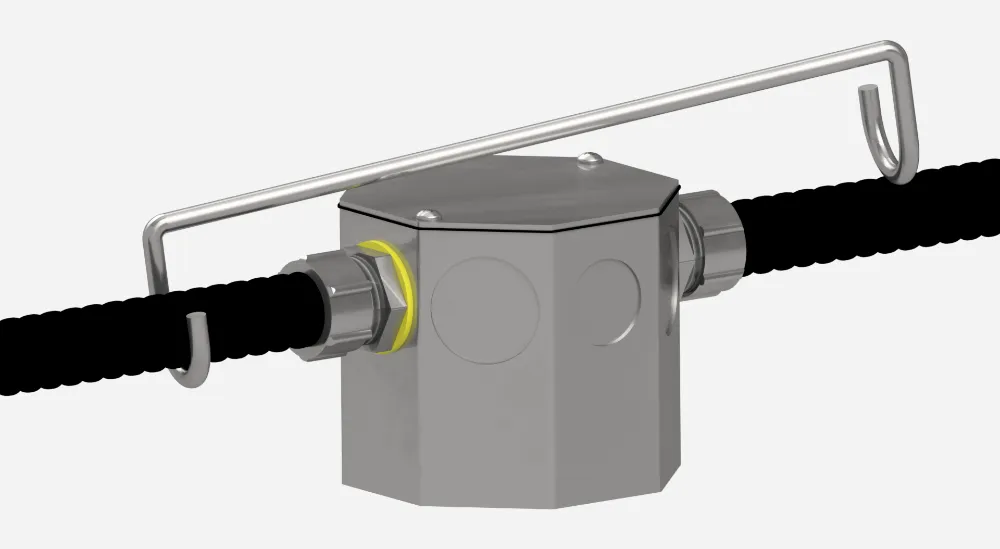

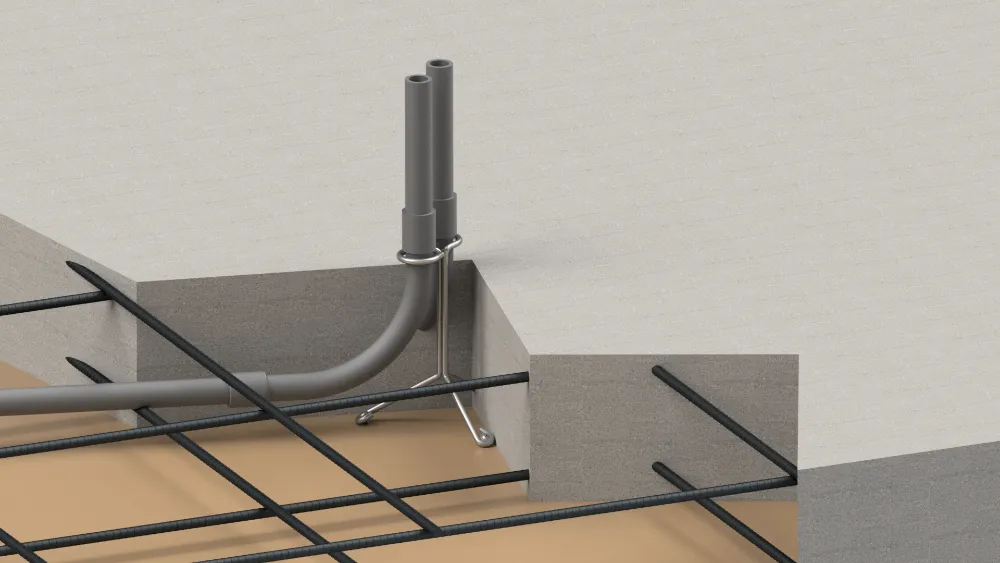

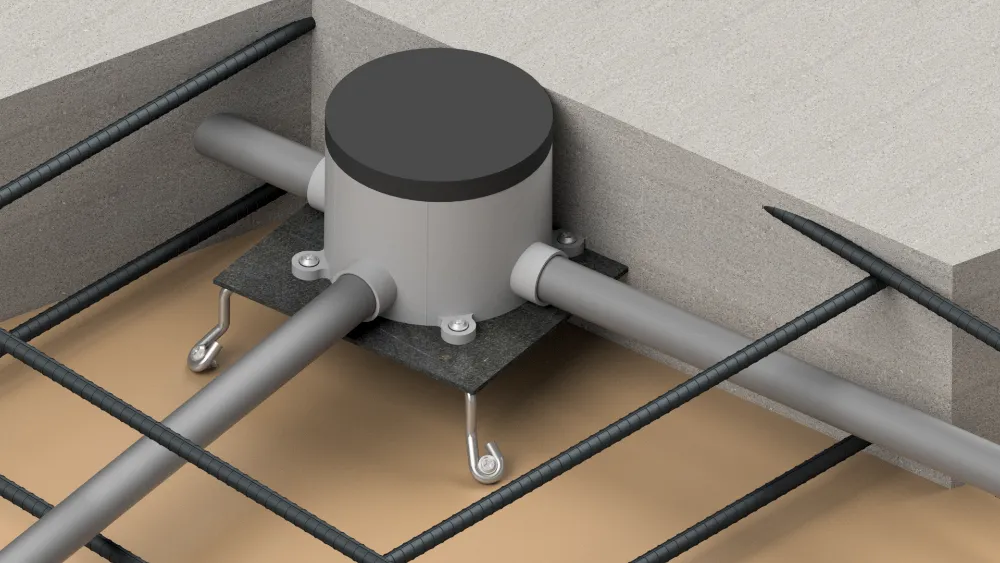

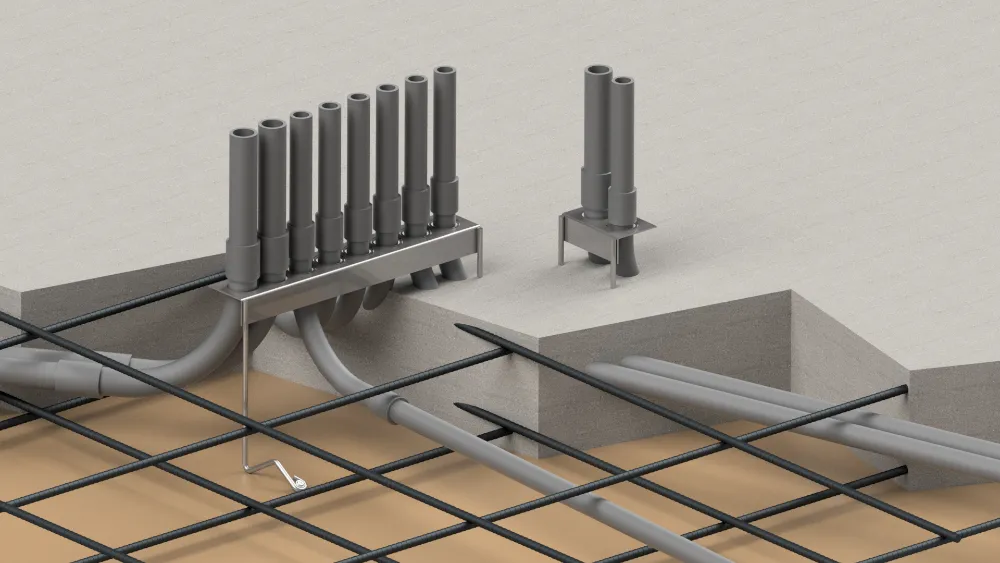

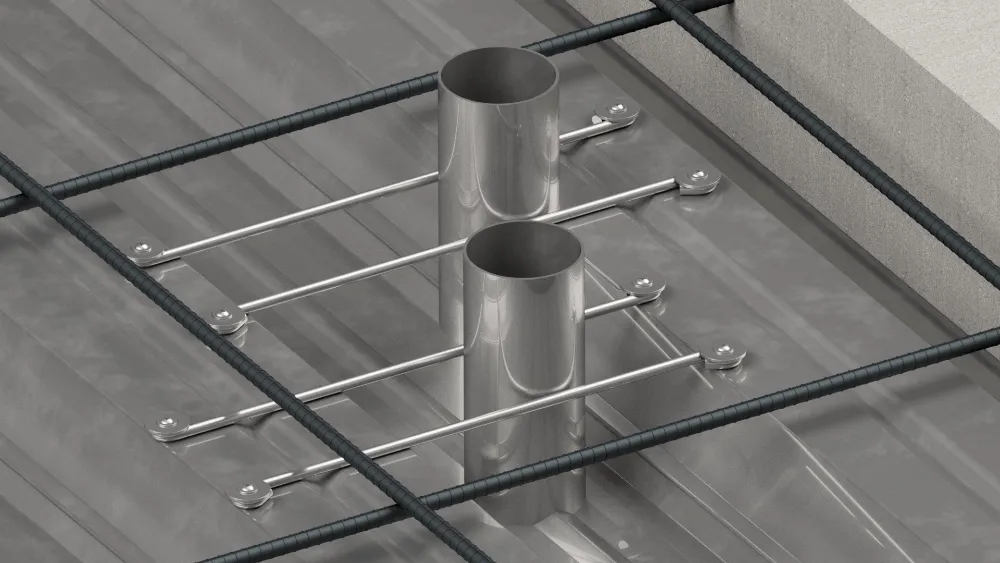

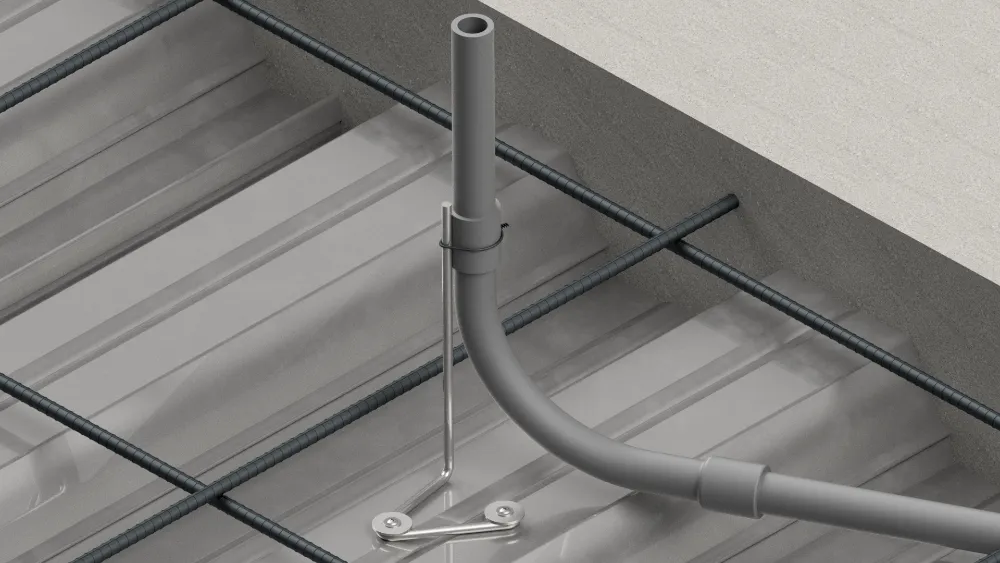

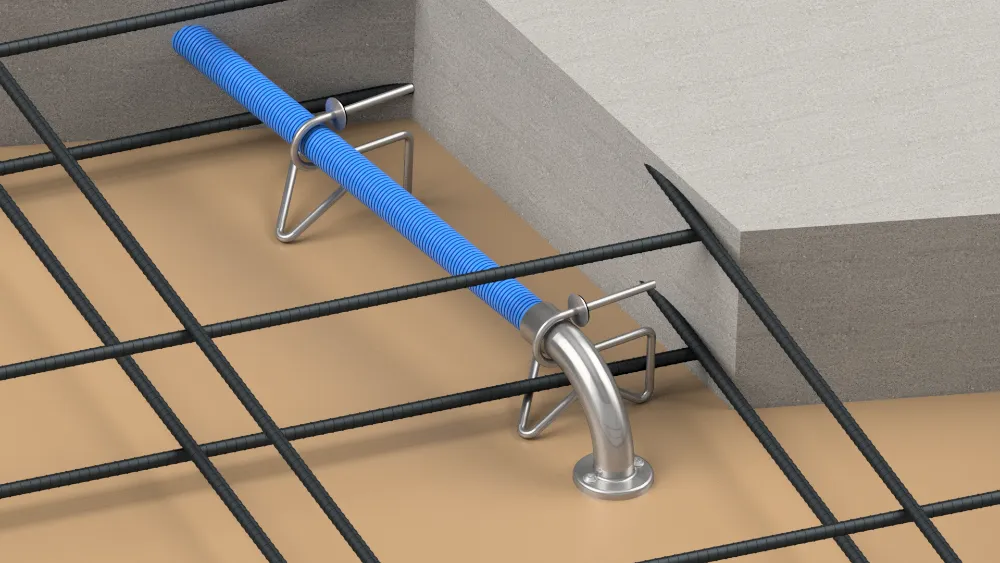

300 to 382

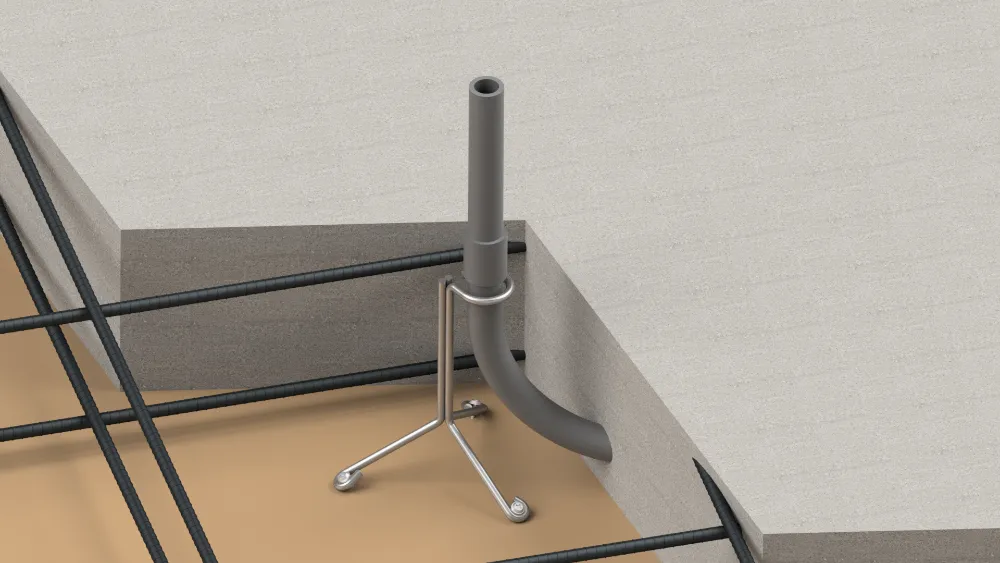

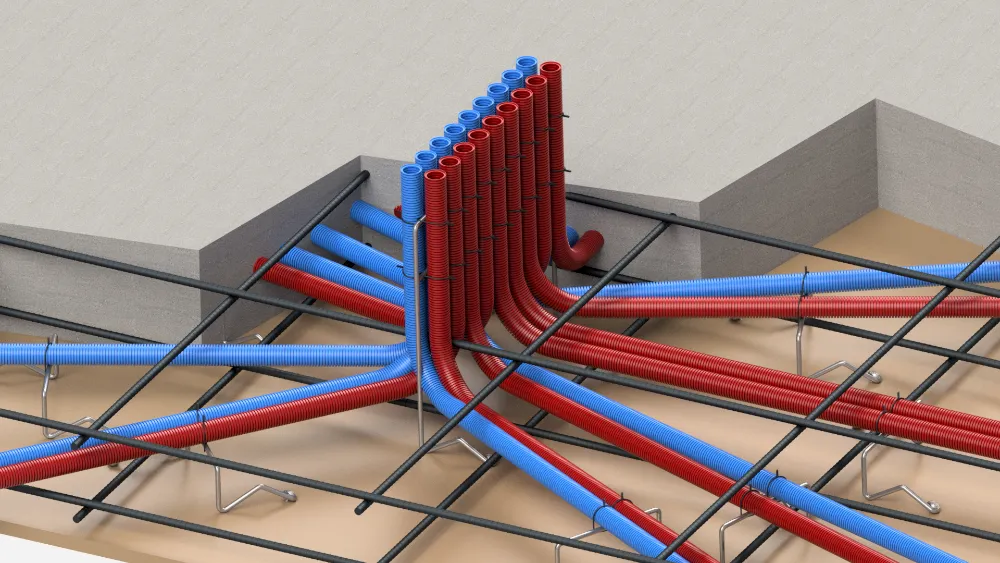

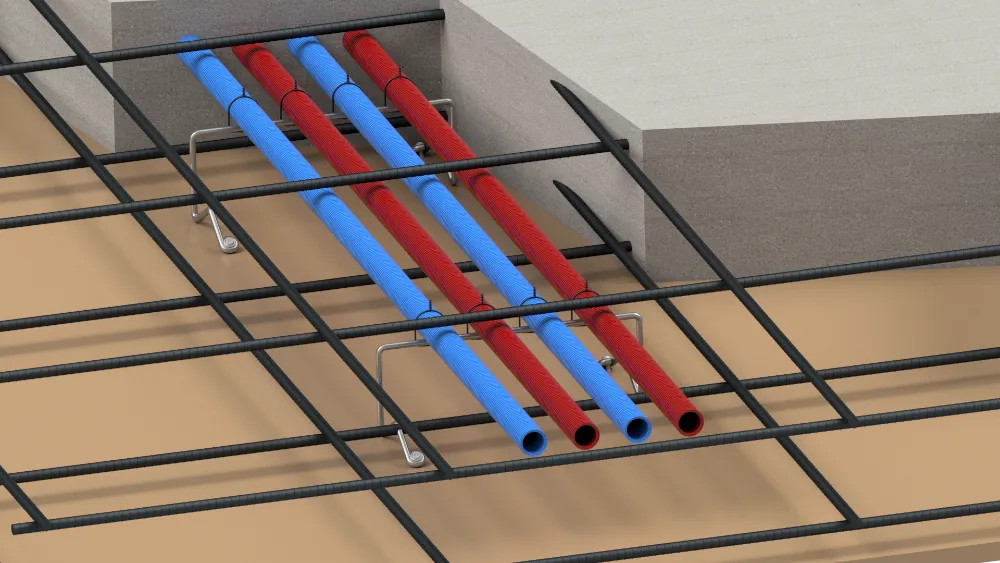

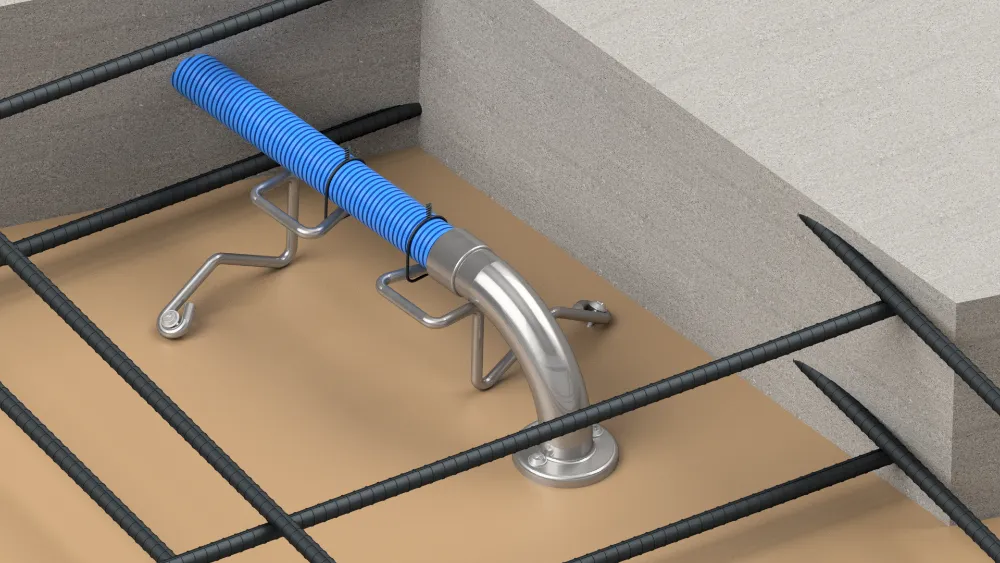

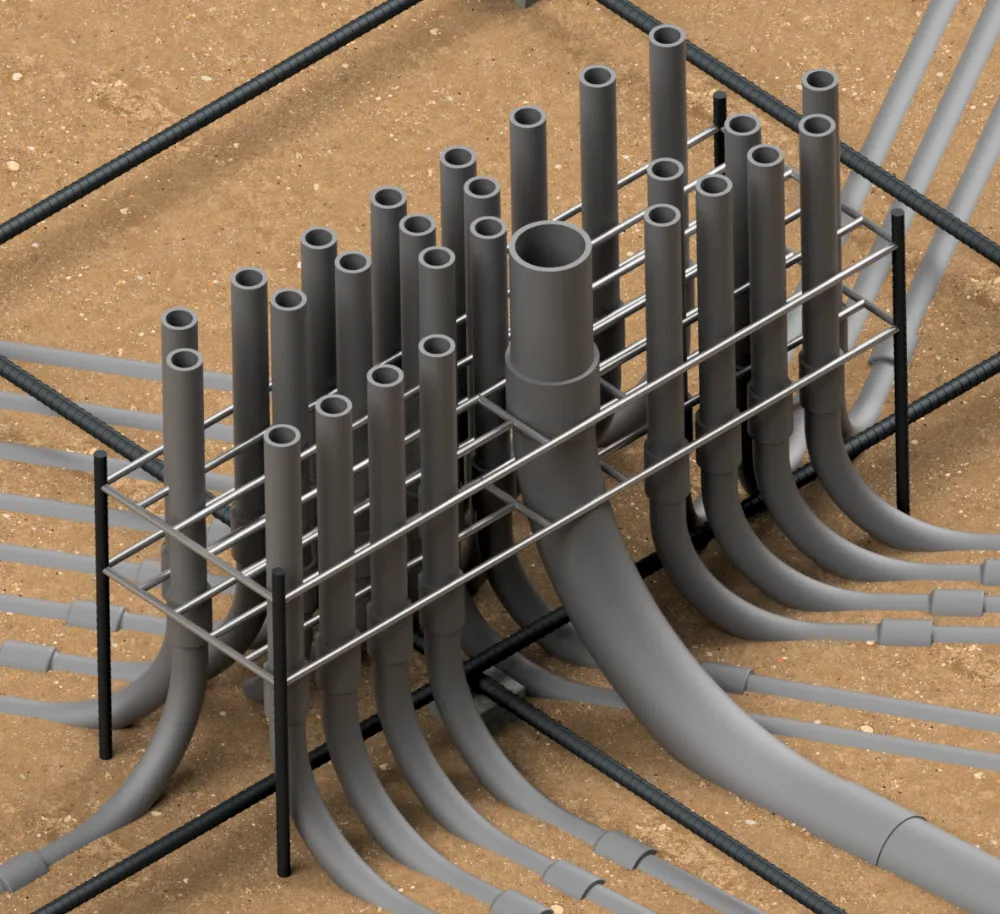

Cast-in-place

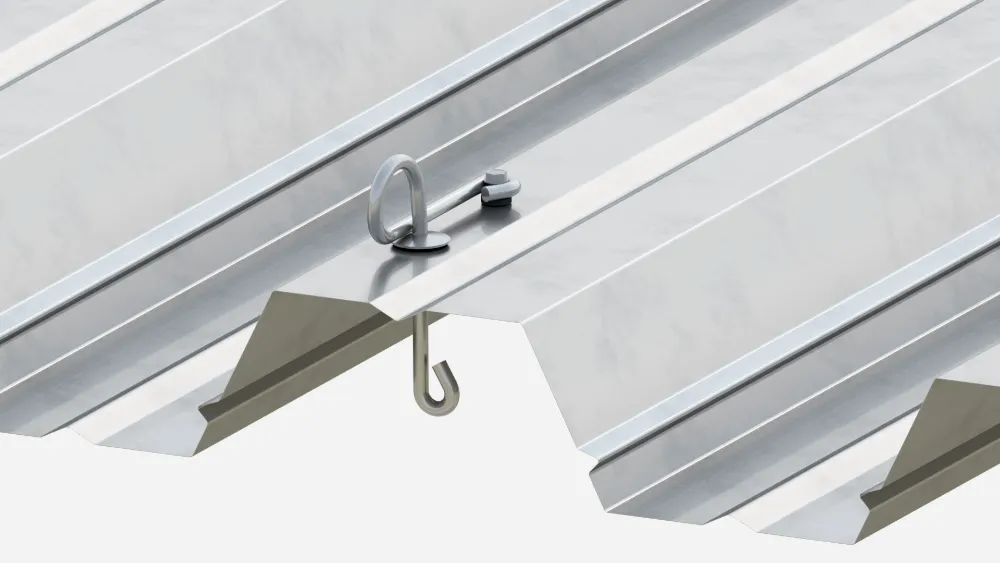

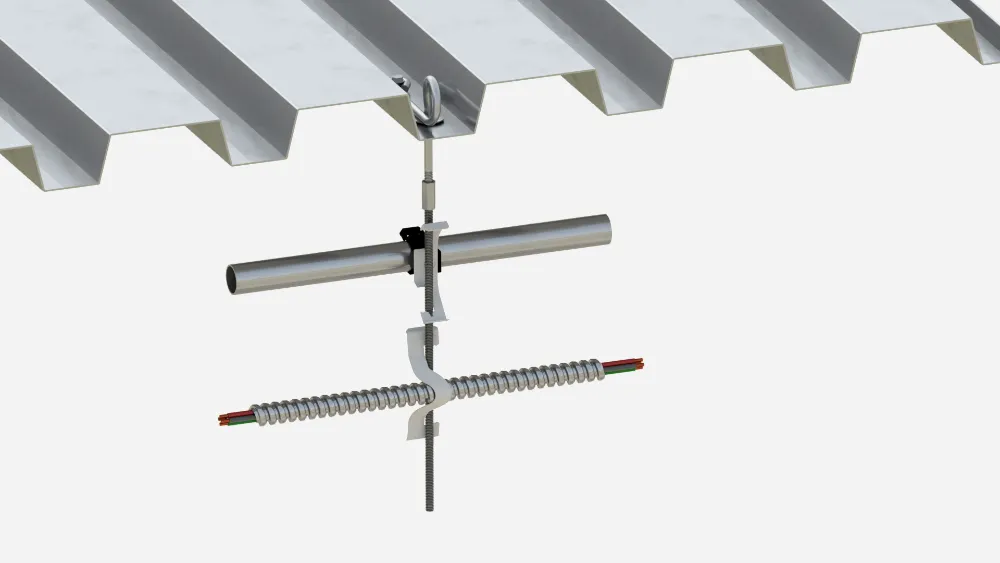

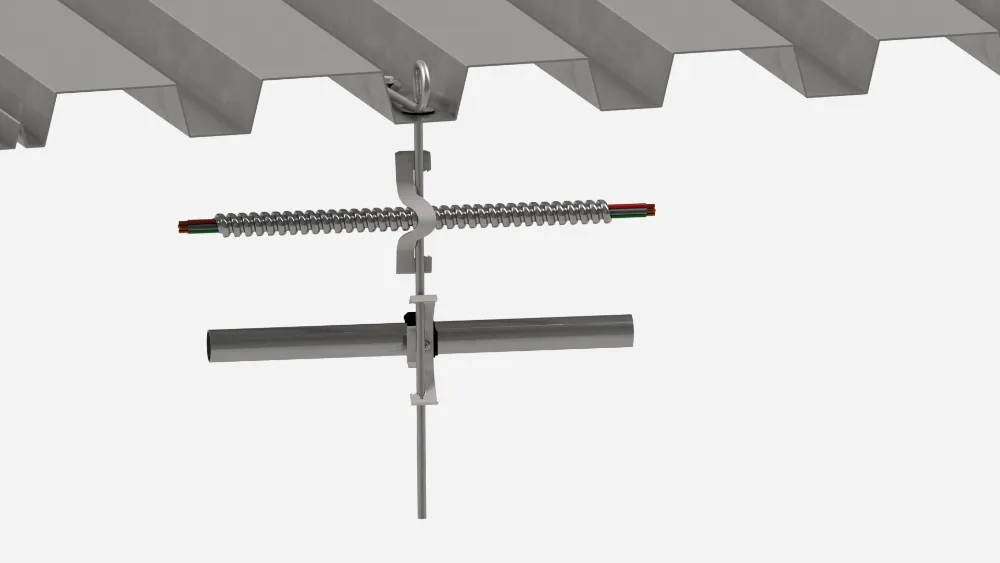

Temporary securement until the concrete is poured, no rating. The 380, 381 and 382 are listed at 300 lbs.

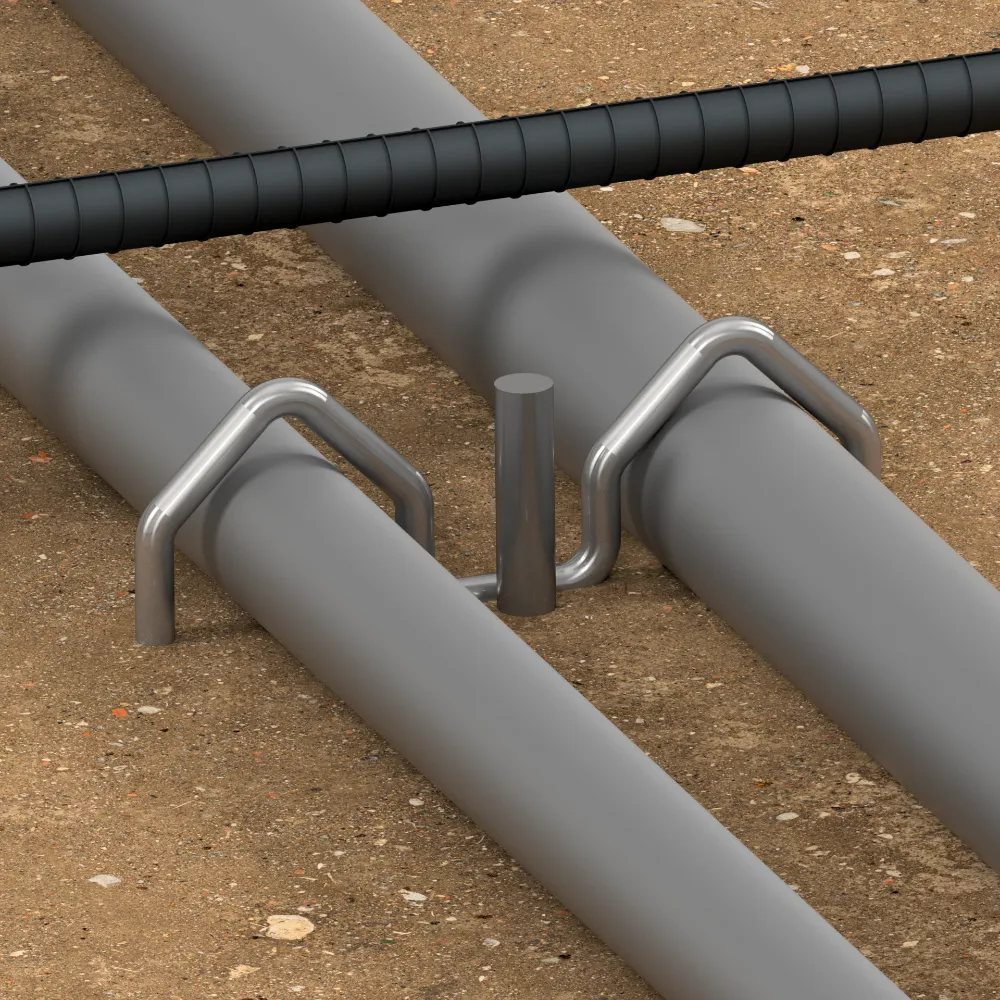

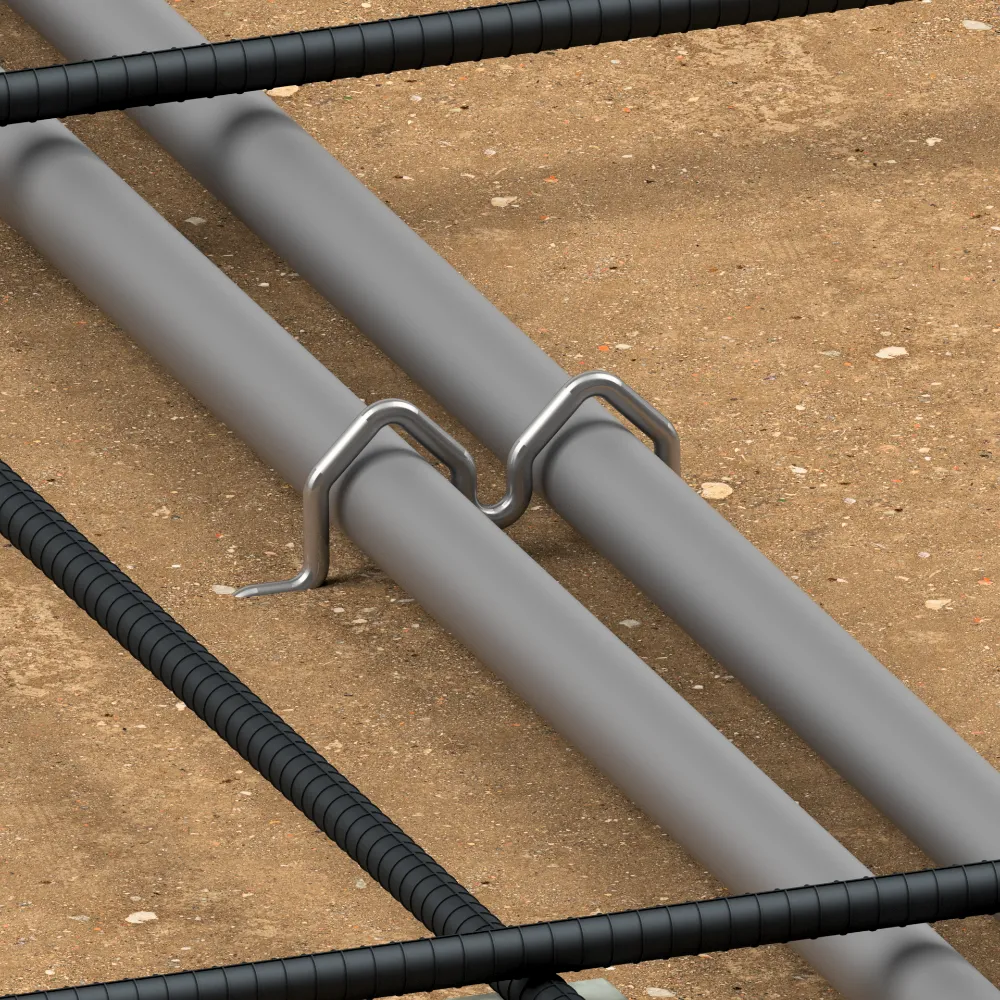

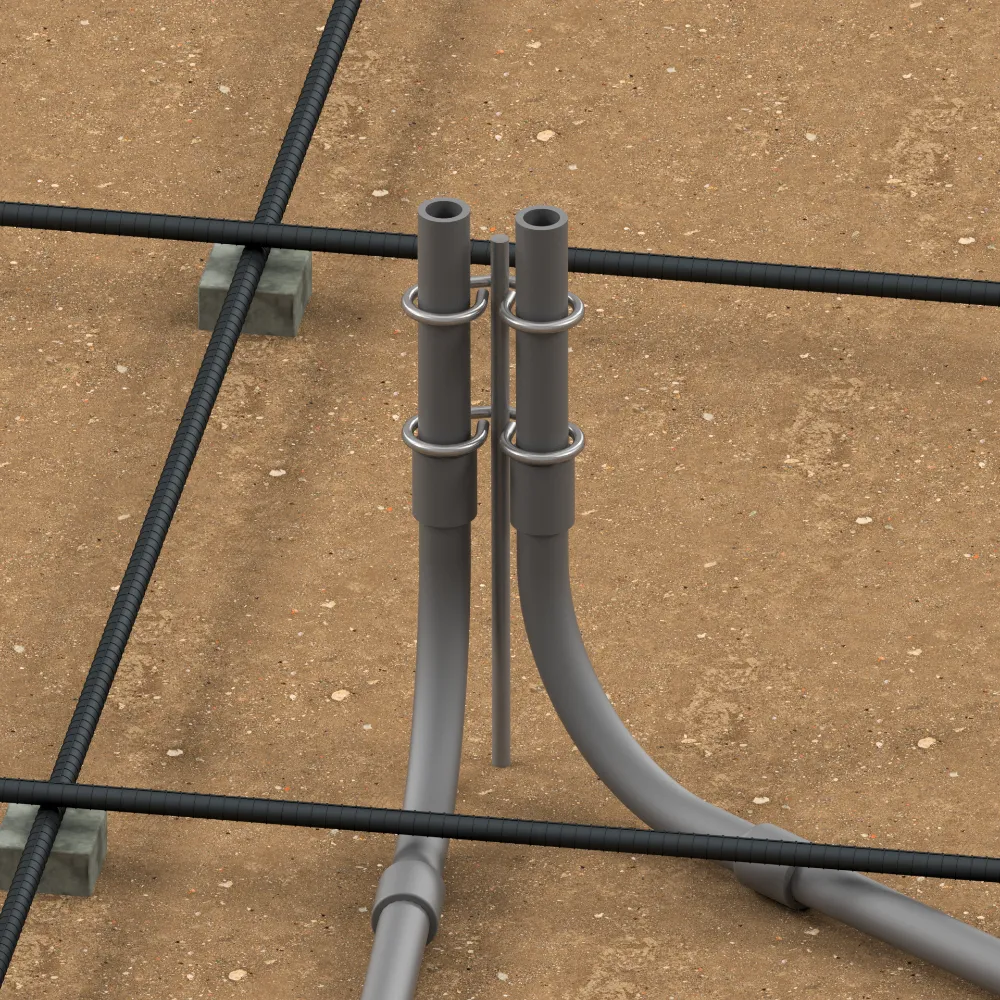

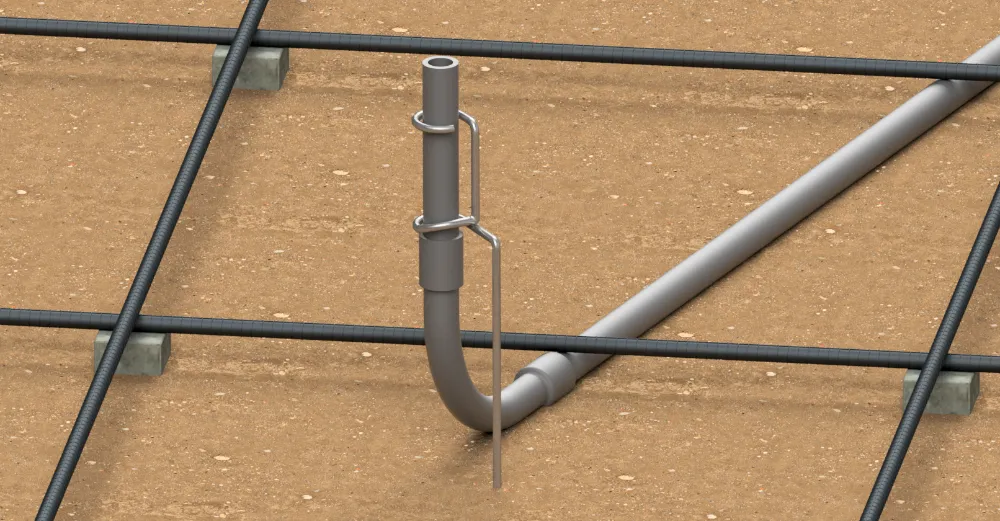

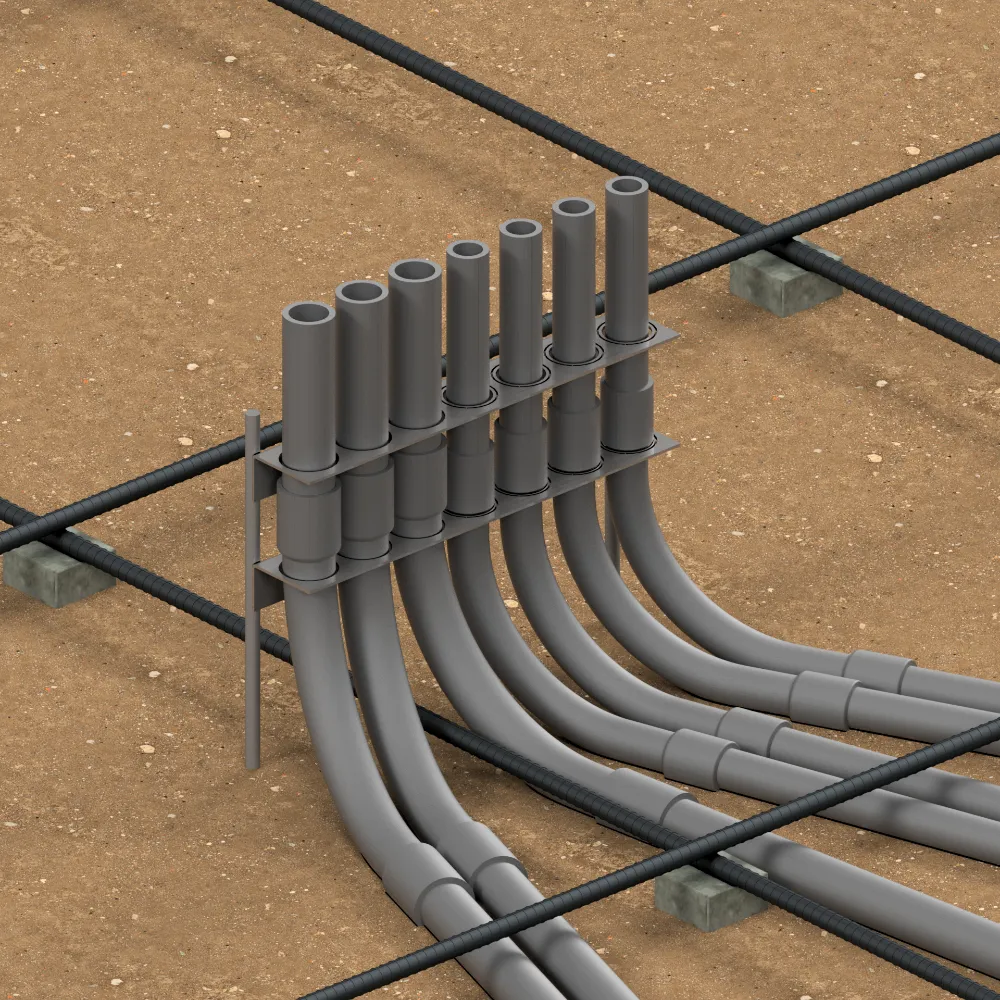

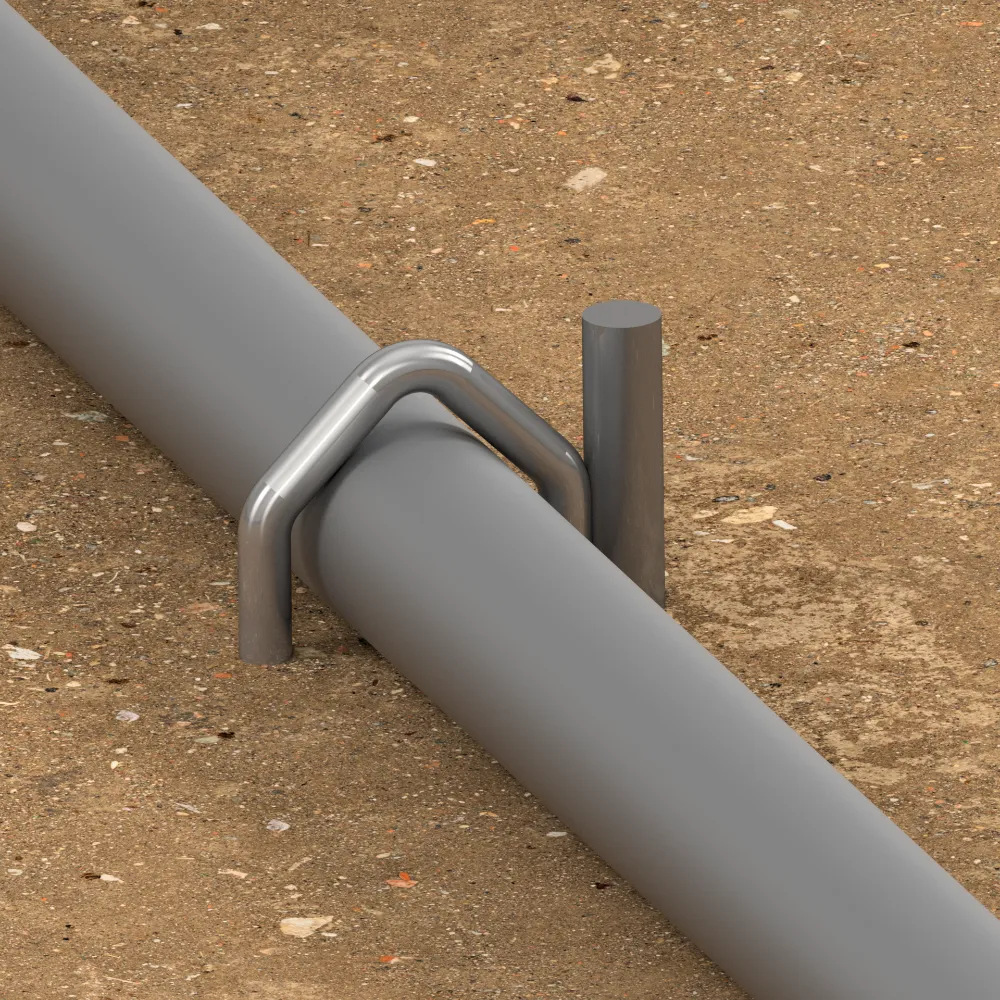

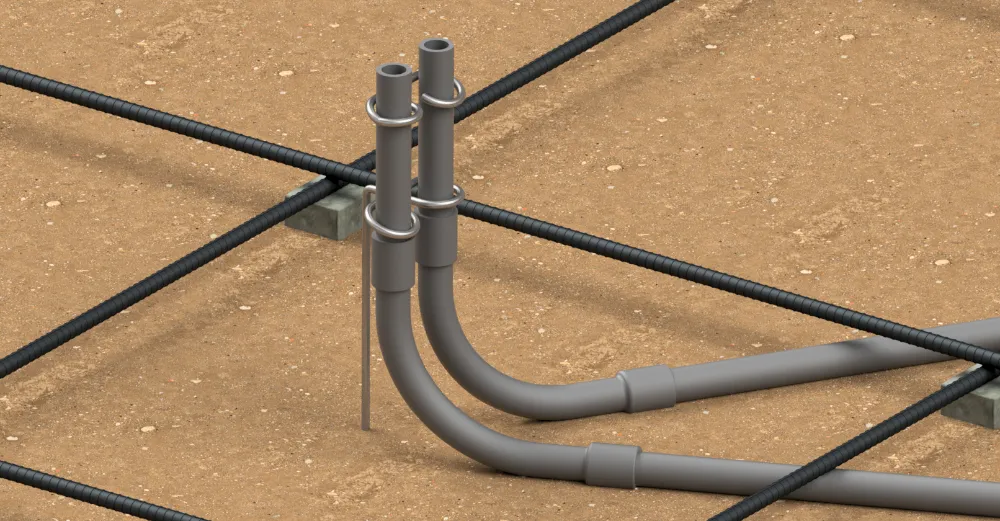

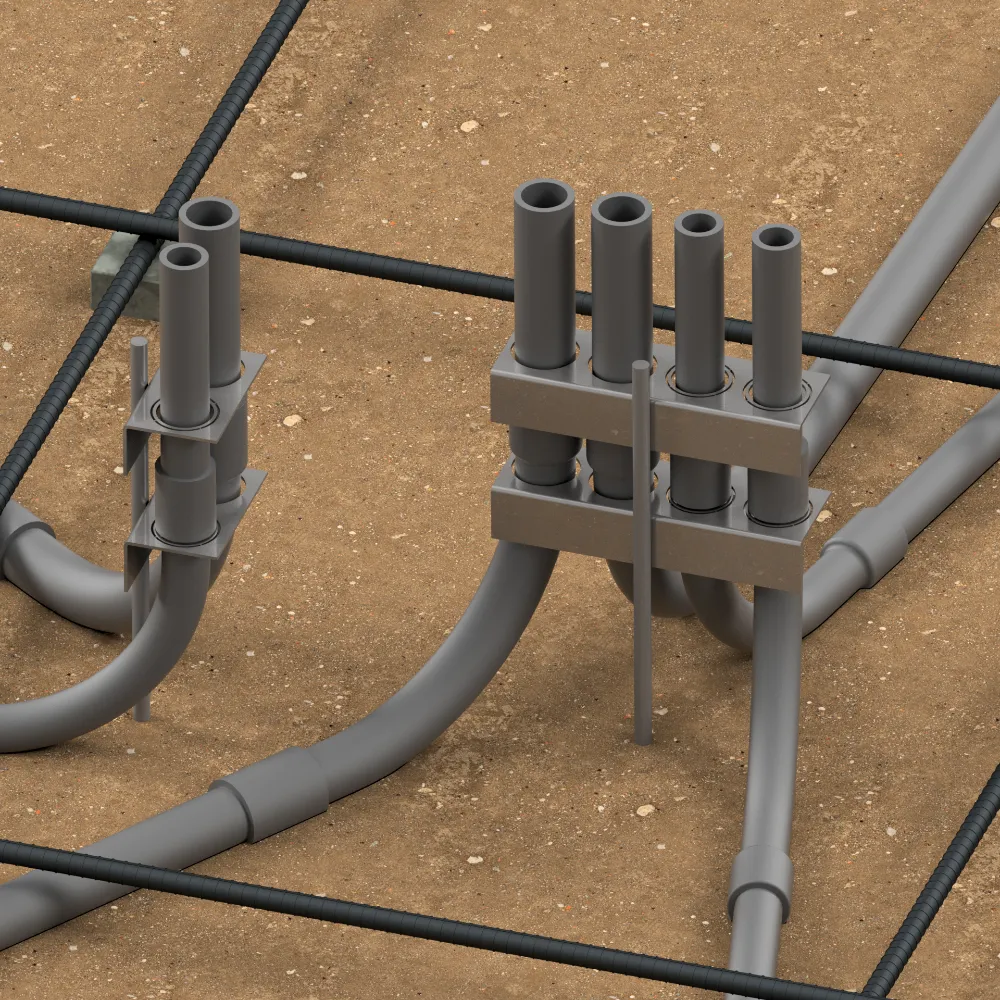

401 to 430

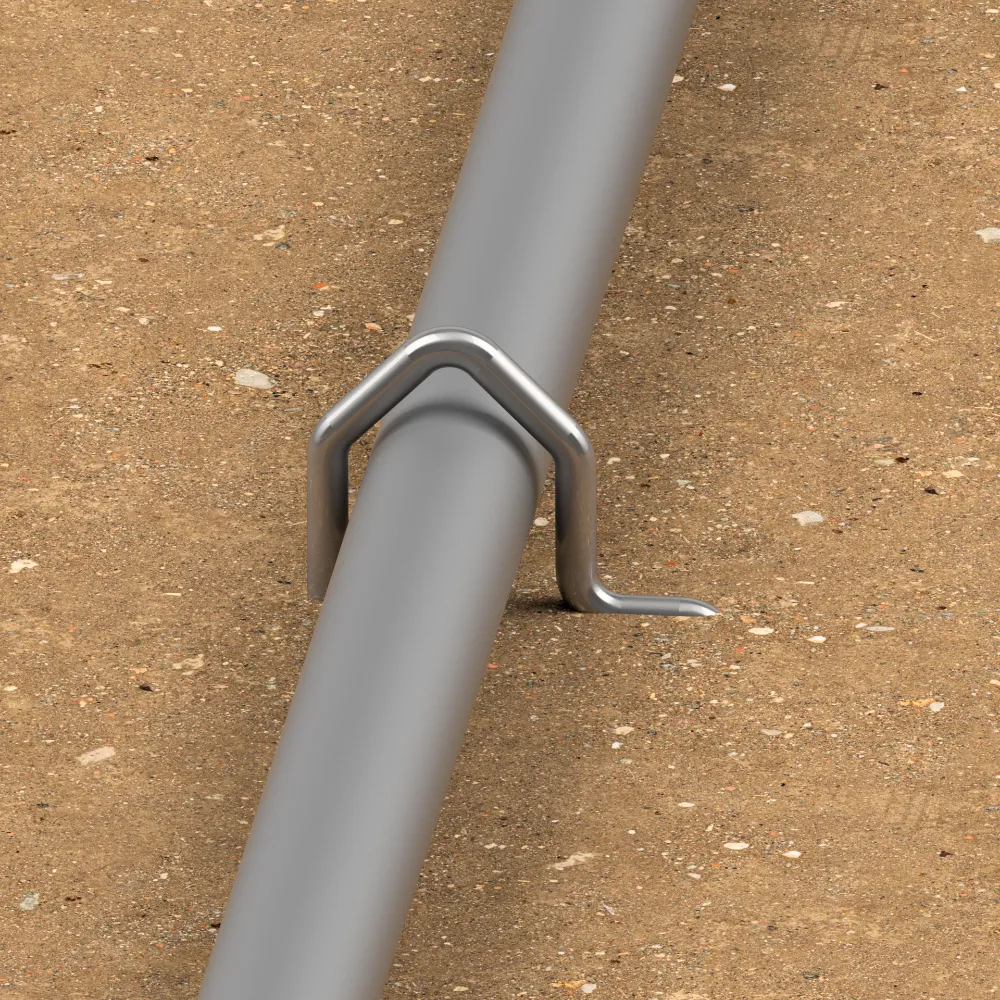

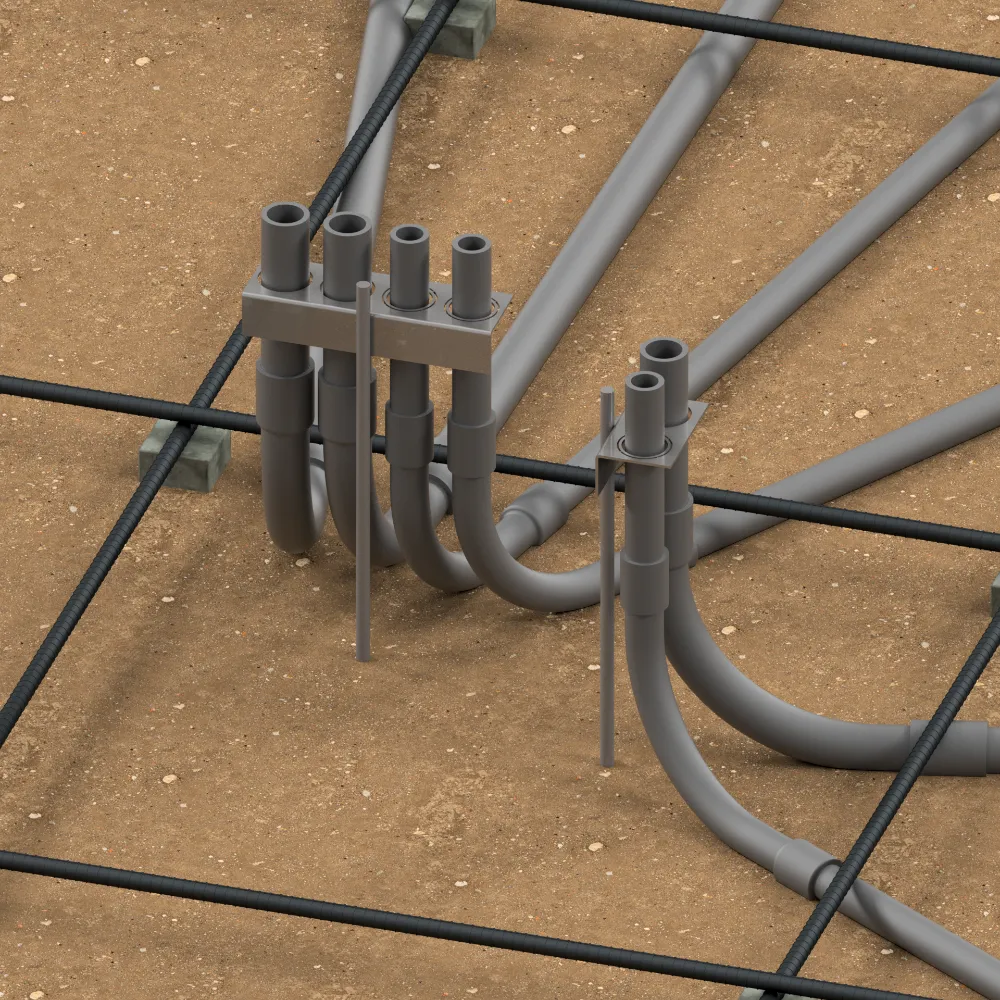

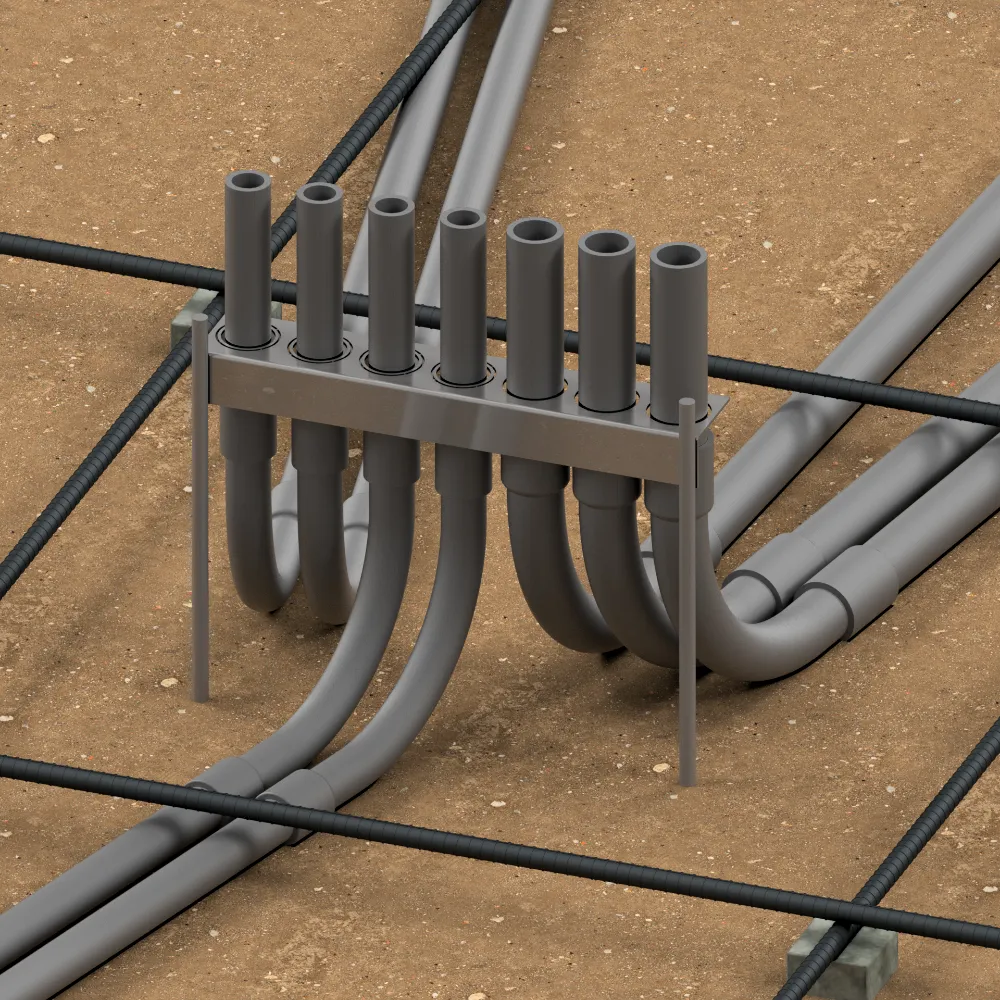

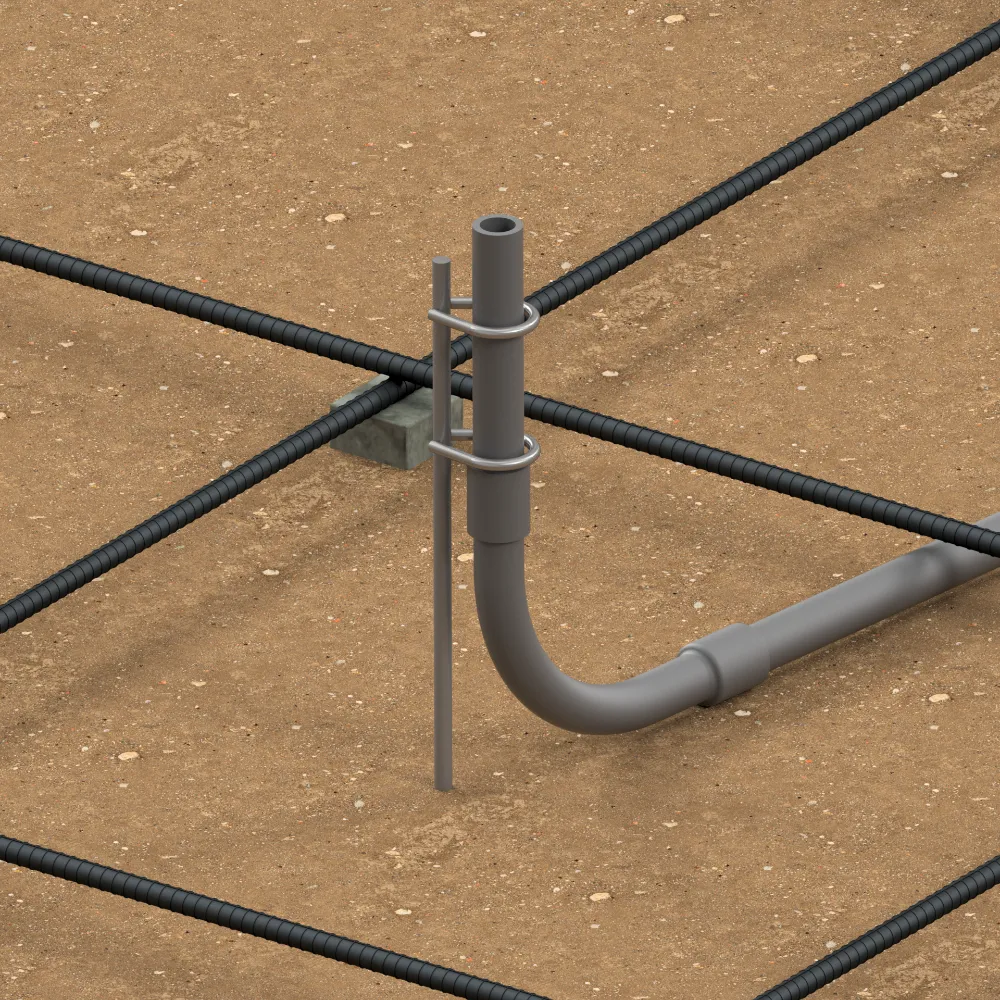

Slab-on-grade
Temporary securement, no rating.
How a support is specified
Three choices make the part number
01
The substrate chooses the fastener
Segment A. Concrete, wood, sheet steel or a structural flange. That fixes the fastener callout and the attachment capacity.
- Concrete
- A001 to A05 · pins and anchors
- Wood: solid sawn, glulam, CLT face
- A40, A50 · Timberpin, hex lag
- Sheet steel and metal deck
- A60 · self driller
- Structural steel flanges and purlins
- A71 to A74 · clips
02
The mounting chooses the option
Segment B. The 90 deg foot loads the fastener in tension from below; the sidemount foot loads it in shear from the side of a beam or joist.
- 90 deg foot
- B01 · S90, tension
- Sidemount 180 deg foot
- B02 · S180, shear
03
Dimensions finish the callout
Segments C, D and E: drop, return, width, as the Ordering table lists them. Ready-to-ship configurations are named; everything else is built to order.

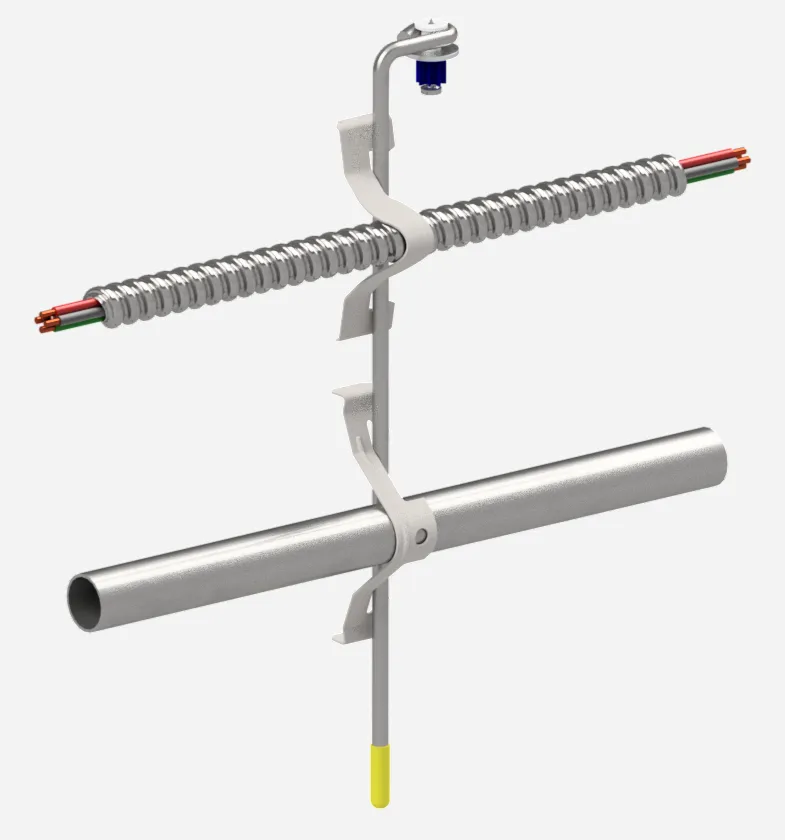

- 100 Simple Straight Rod
- 100A01B01C24 · C is overall length

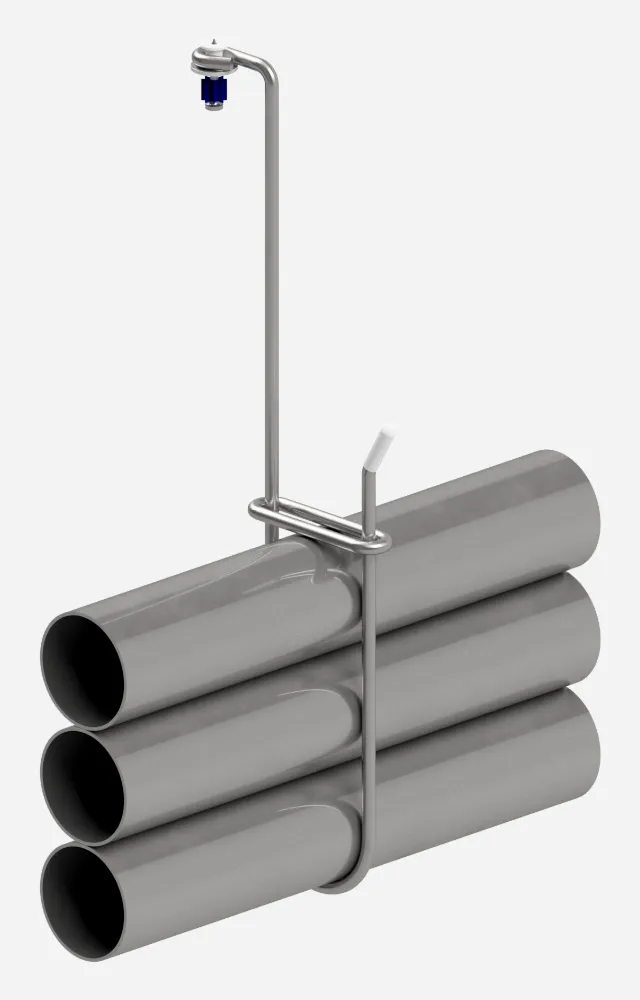

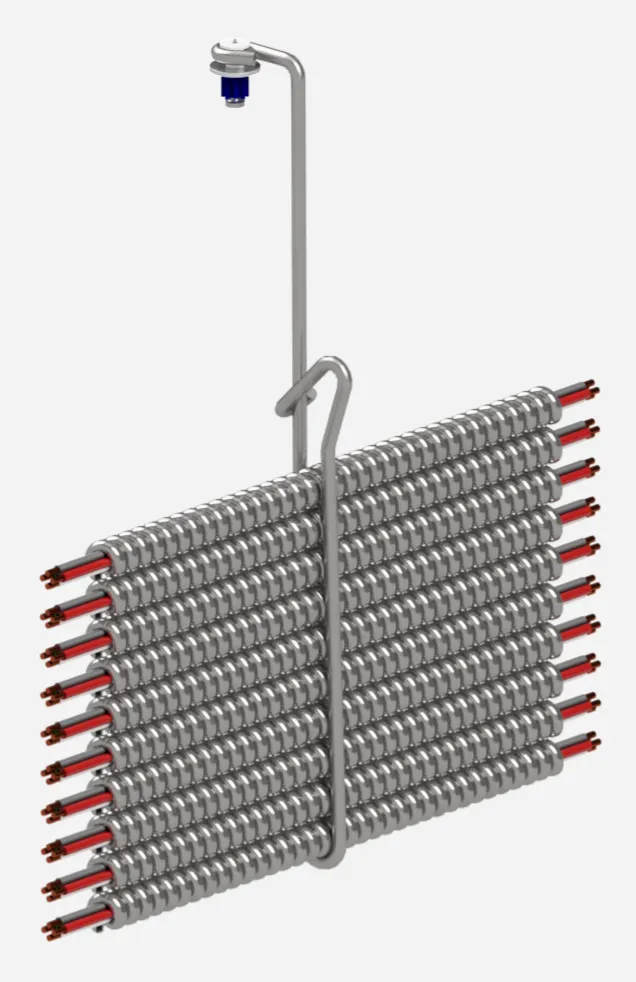

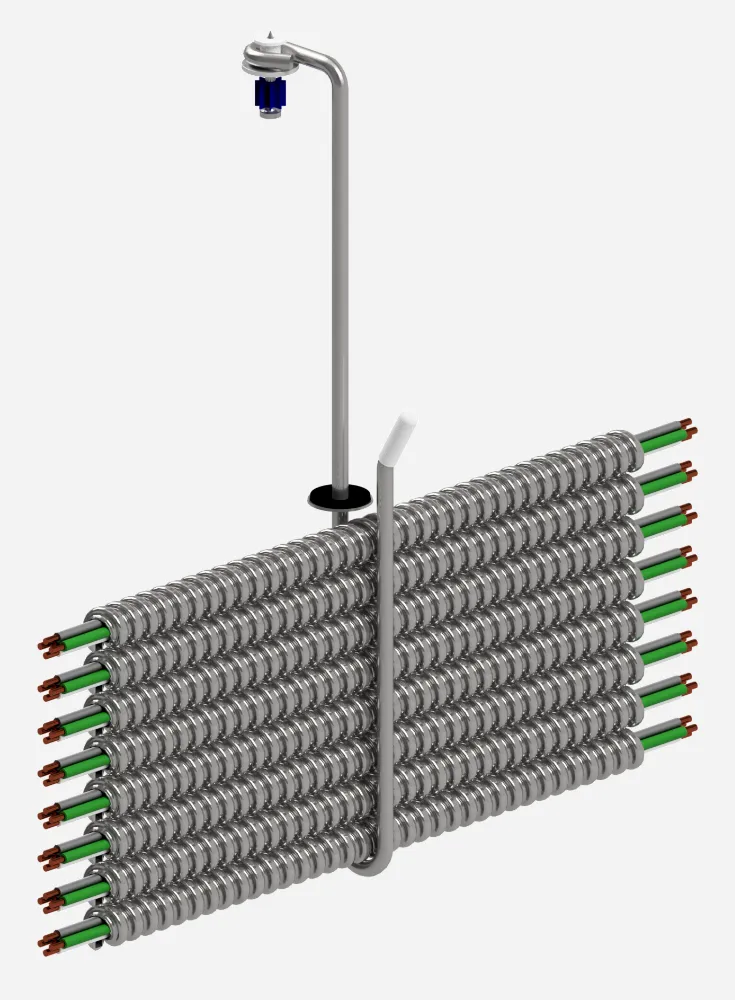

- 101 Simple Stacker
- 101A01B01C24D08E01 · drop, return, size
The published capacity is the configured assembly: the lesser of the support rating and the attachment, with what governs named beside it.
Send the list, get the support
Configure the parts, add them to your list, and send it. We reply with pricing and, when you ask, the submittal package.
