322Cast-in-placeElectrical
Table Top Box Support

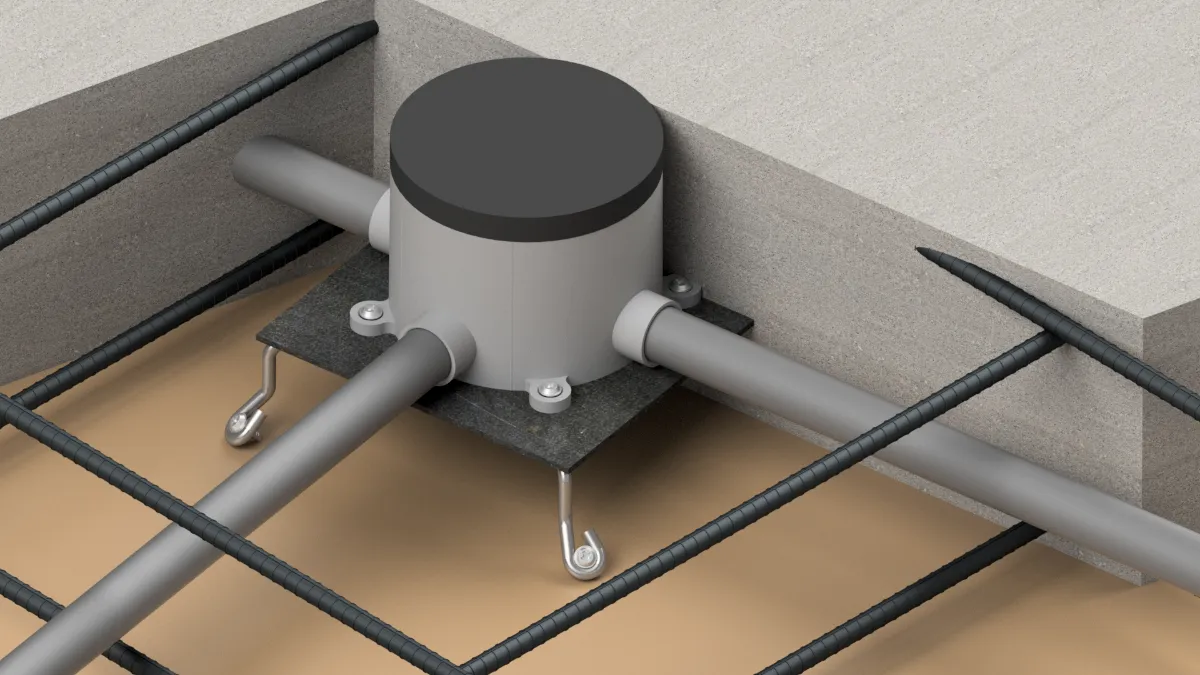

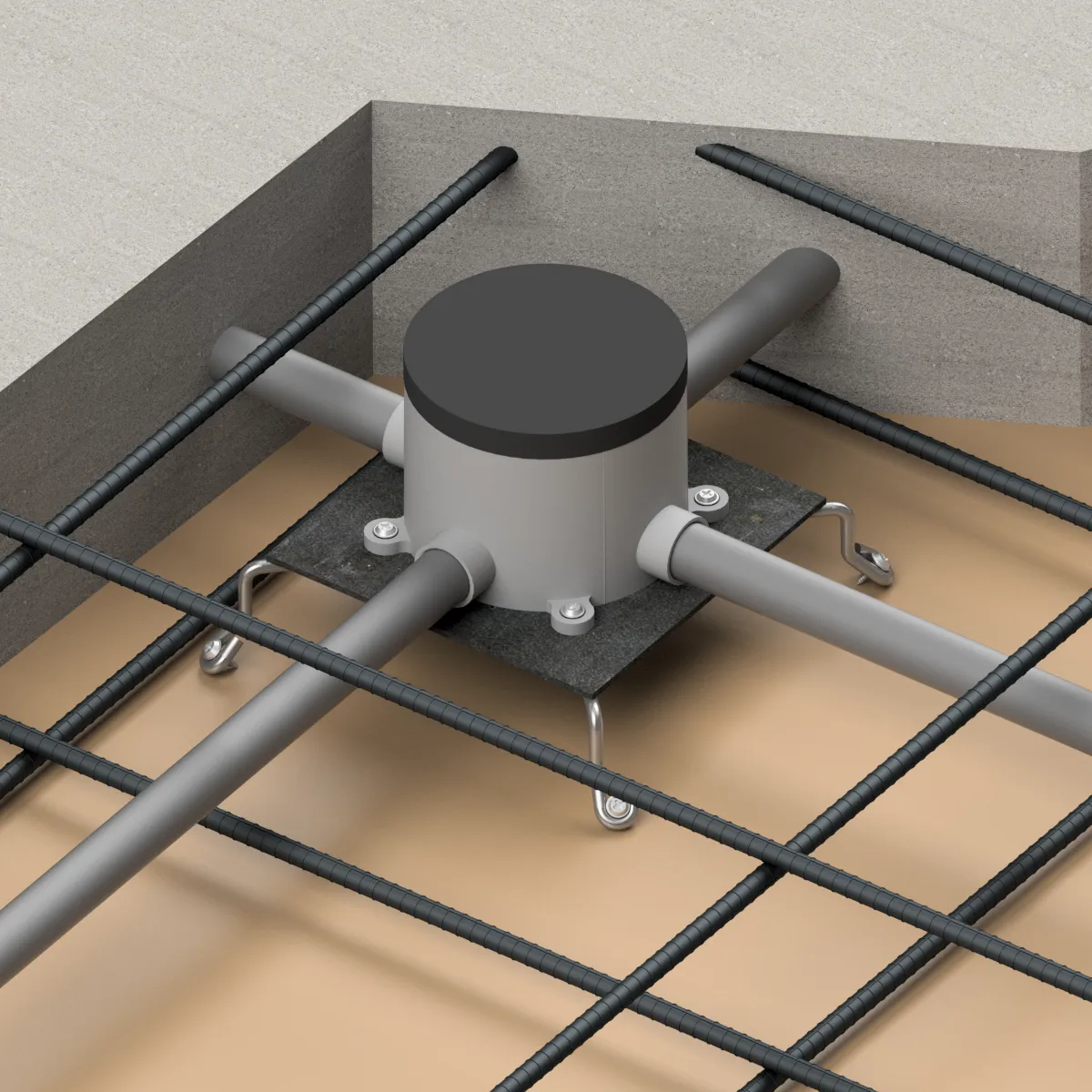

Positions a floor box during the pour; the table top withstands deck traffic.

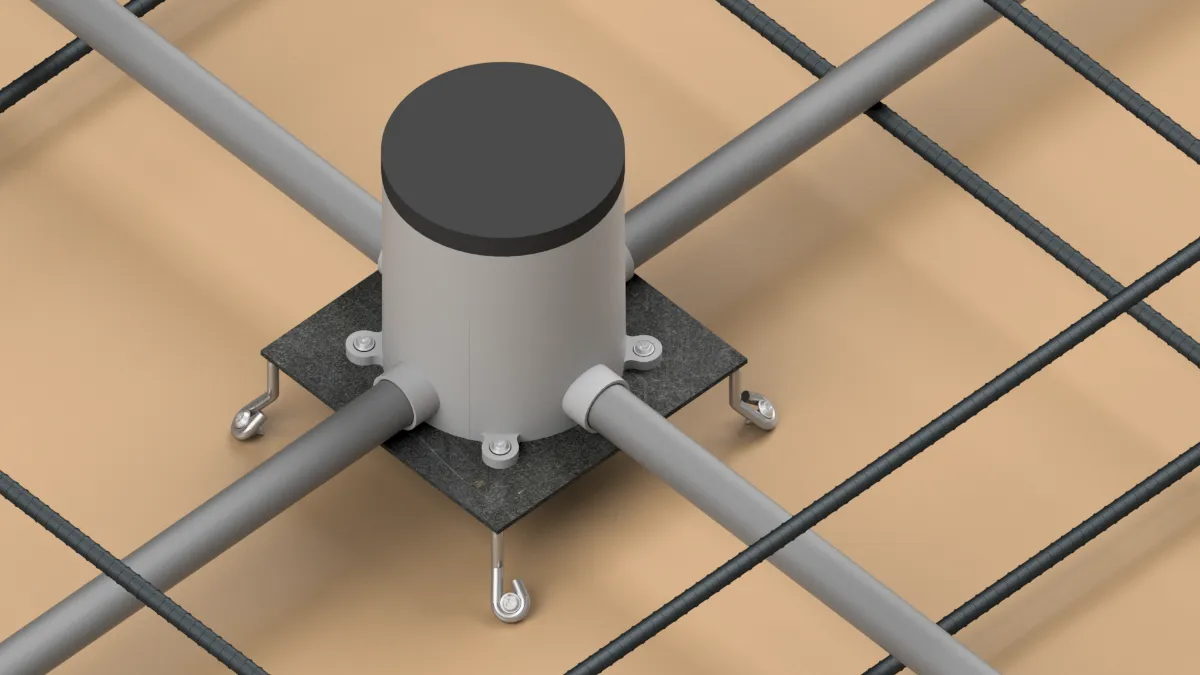

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Order
Order the part
Add parts to your list, then request a quote, a submittal package, or both. Pricing follows by reply.
Built to order

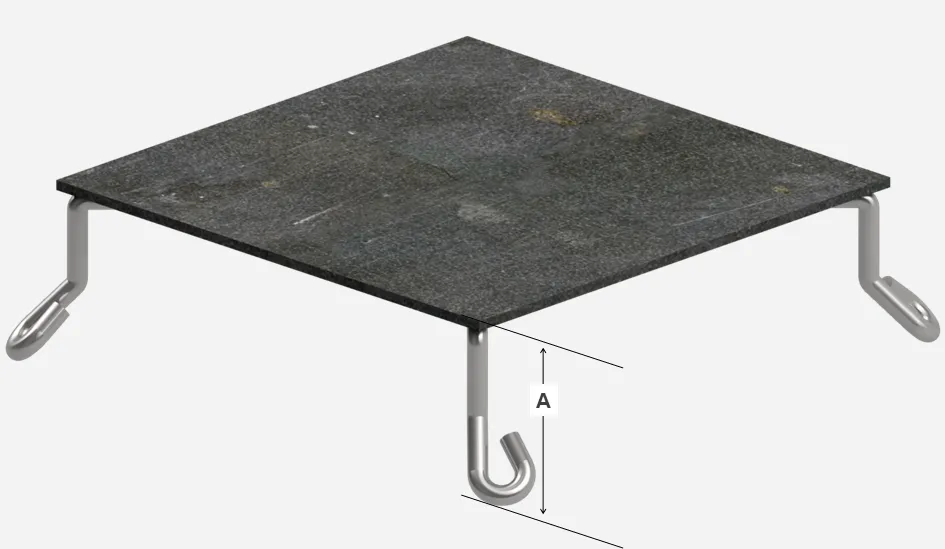

Height, in.
Your part number
322A__
Finish the selections to complete the request.
From the data sheet
Notes
- Positions a floor box during the pour; the table top withstands deck traffic.
- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.
- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Table top is a 7 x 7 x 1/8 in. steel plate standard; other sizes per order.
- Electrical: positions PVC conduit, PVC-coated GRC and ENT raceways, boxes and fittings in the pour (NEC 352.30, 344.30, 362.30), secured so they cannot float or shift; spacing per the specifications and the manufacturer.
- Drawings not to scale.
