381Cast-in-placeElectrical and plumbing
Cast-in-Place Straight Rod

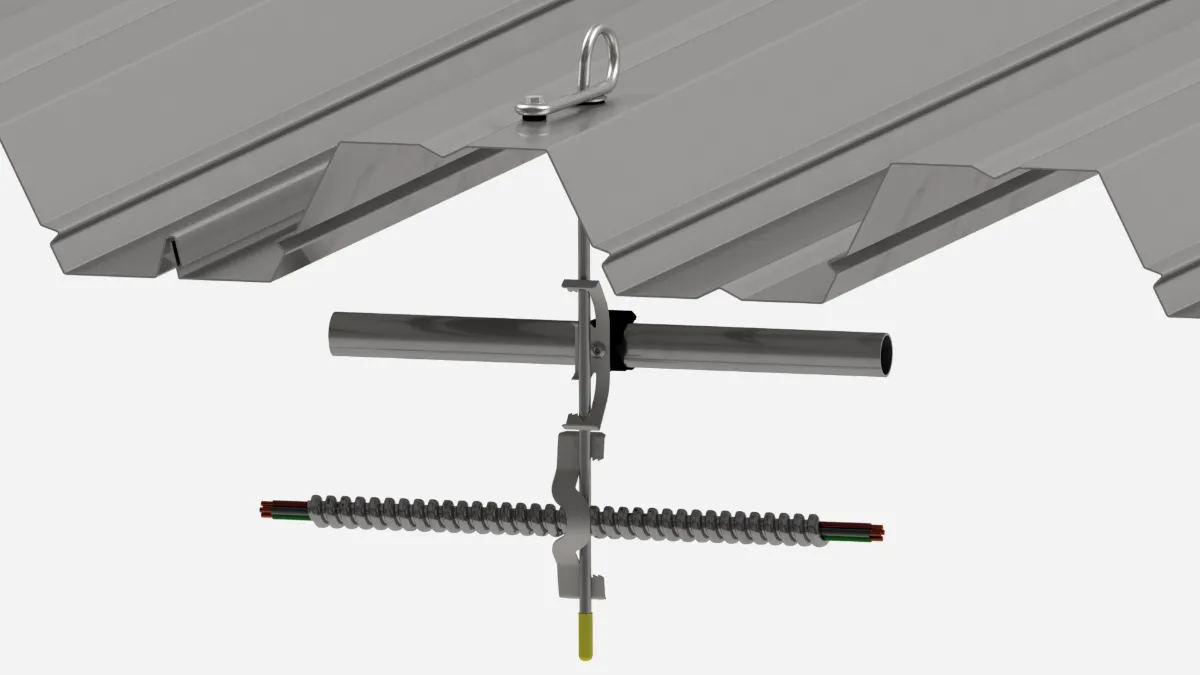

Cast-in-place straight rod hanger below steel deck: the 1-1/2 in. OD loop rests within the lower flute and casts into the pour; the free end carries the utility.

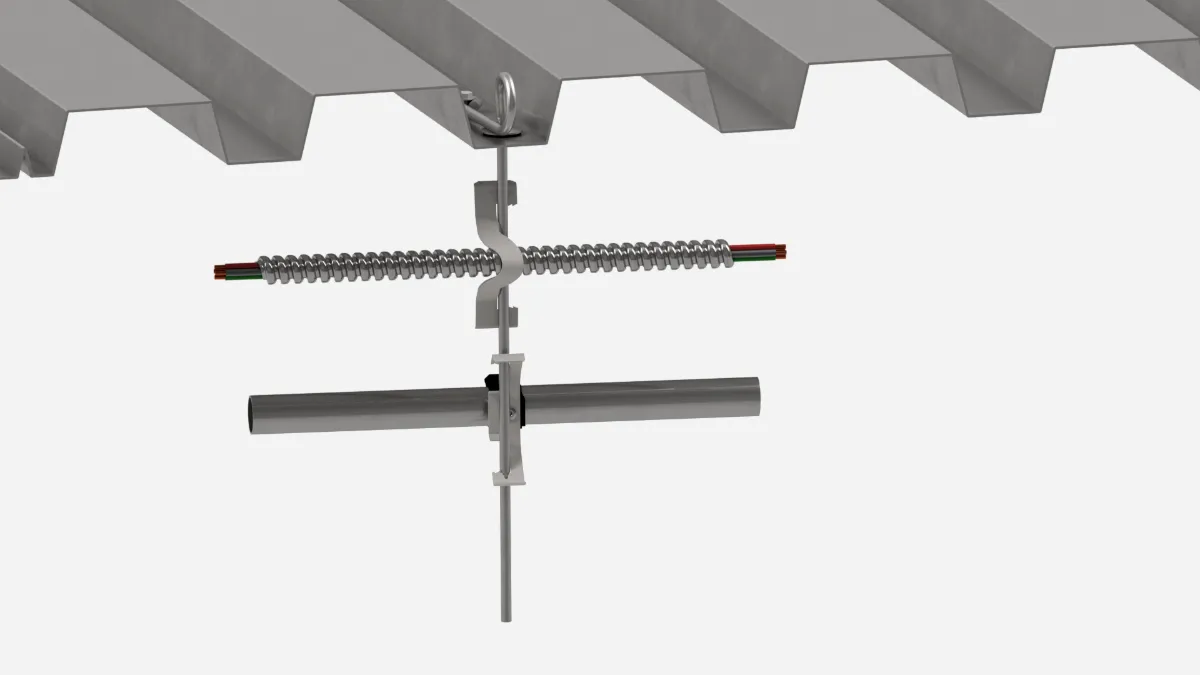

In use.
Rated capacity
300 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
3 - 120 in.
Length.
ICC-ES EvaluatedPMG-1840
Support rated load 300 lbs, listed per ICC-ES PMG-1840 (September 2026). The support hangs from its cast-in 1-1/2 in. OD loop resting in the lower flute of the steel deck; no separate fastener is required.
Order
Order the part
Add parts to your list, then request a quote, a submittal package, or both. Pricing follows by reply.
Built to order
Length, in.
Your part number
381A__
Finish the selections to complete the request.
From the data sheet
Notes
- Cast-in-place straight rod hanger below steel deck: the 1-1/2 in. OD loop rests within the lower flute and casts into the pour; the free end carries the utility.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- Capacity applies with or without a concrete-filled deck.
- The 1-1/2 in. OD loop remains within the lower flute, clear of the insulation.
- Galvanized rod; corrosion resistant.

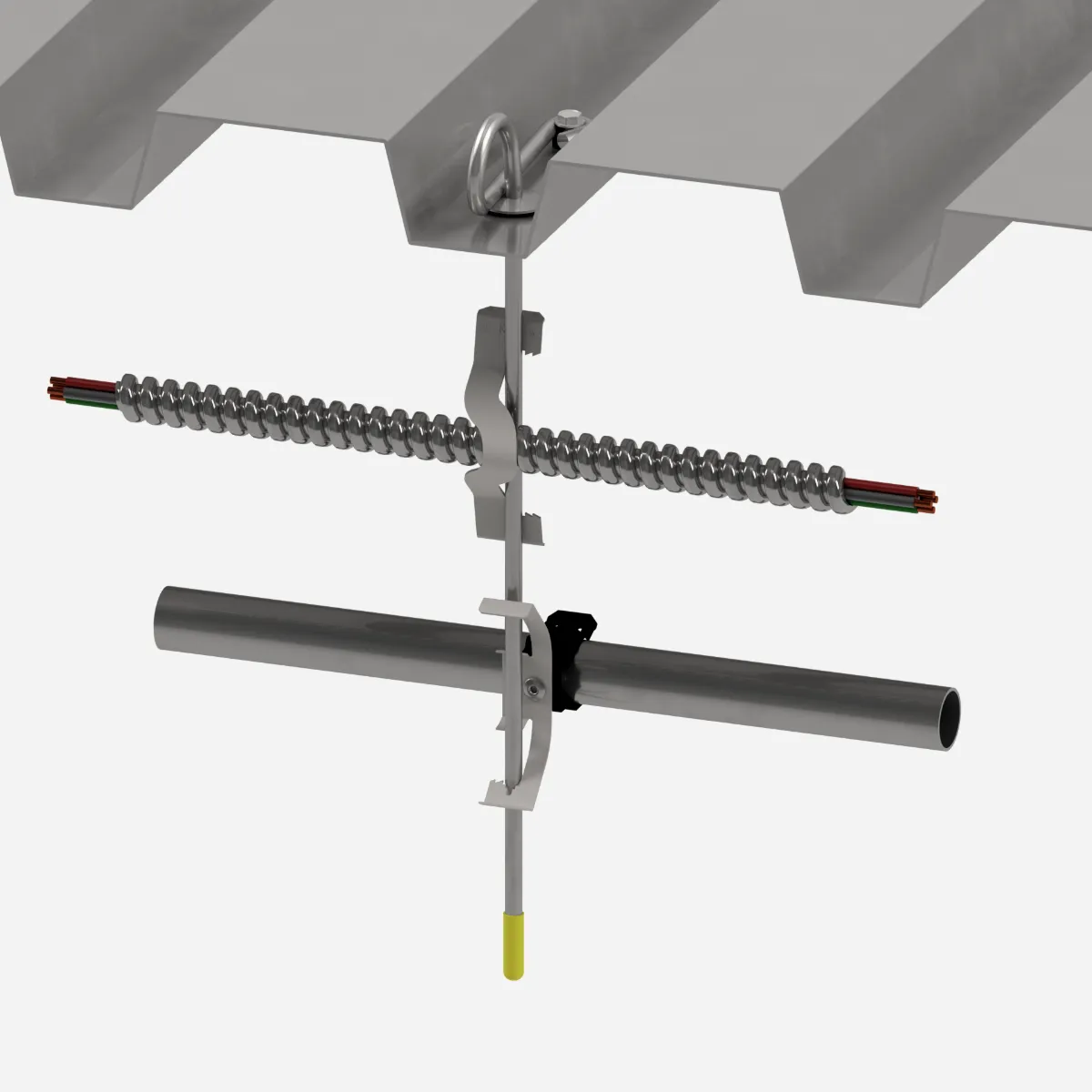

- Electrical and plumbing: hangs conduit, MC/AC cable and piping below the deck.
- Support spacing per NEC 330.30 (MC) and 358.30 (EMT), IPC Table 308.5 / UPC Table 313.3 (PEX) and IMC Table 305.4 (copper).
- Drawings not to scale.
