422Slab-on-gradeElectrical and plumbing
Simple Buoyancy Anchor

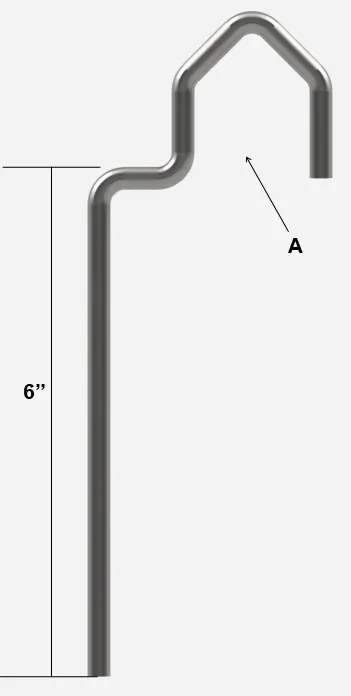

Buoyancy anchor (catalog: Simple Pipe Anchor): keeps pipes from floating during the pour; 6 in. long standard.

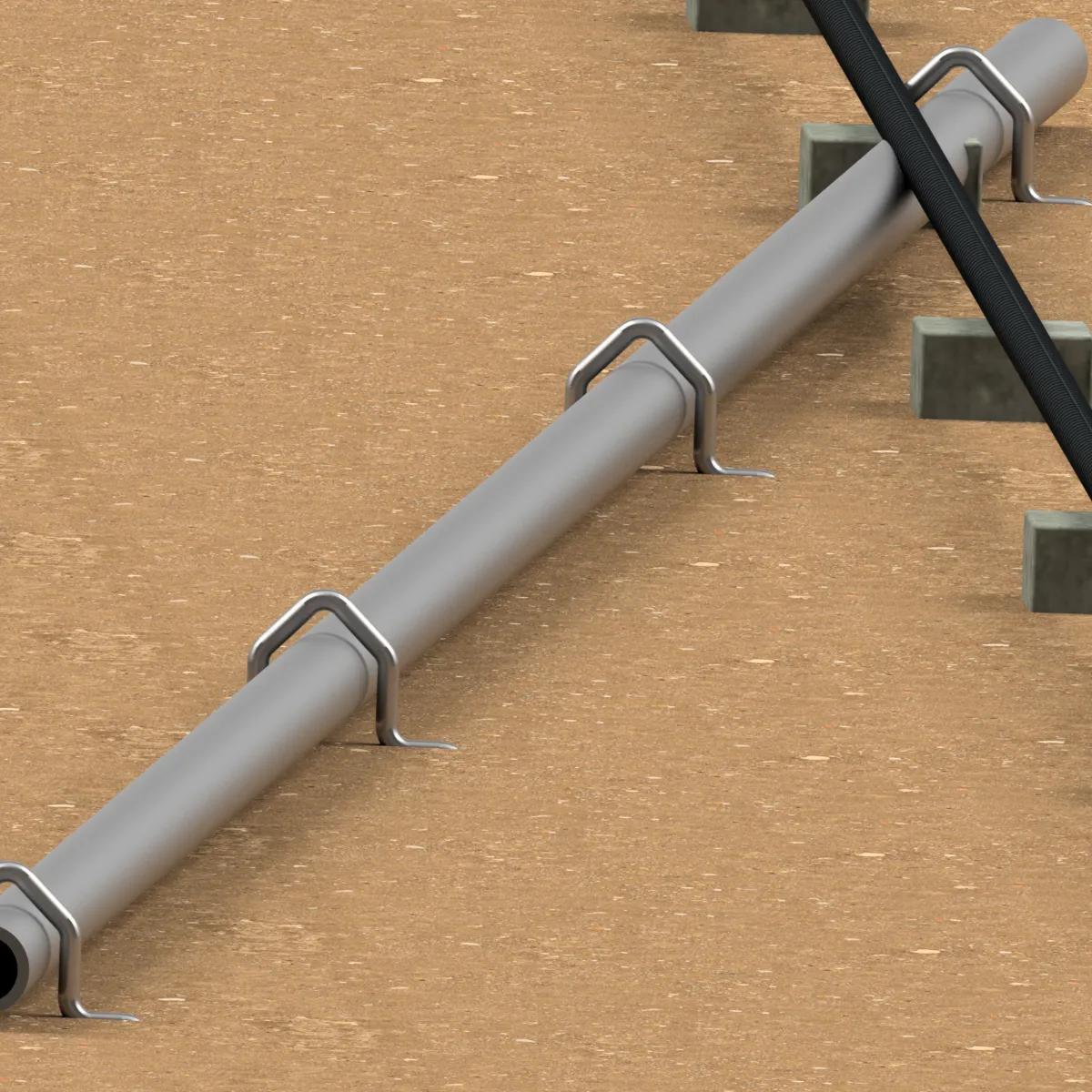

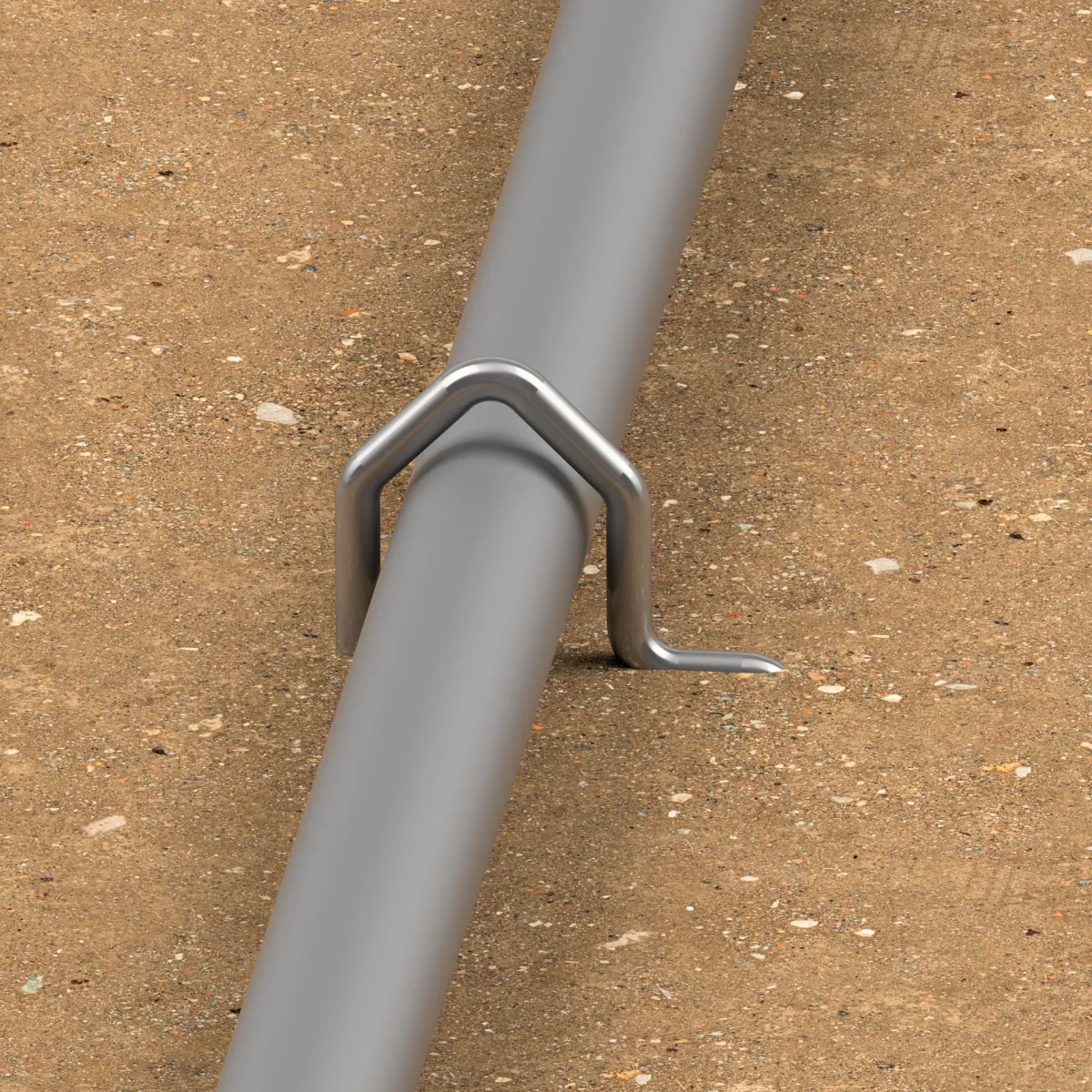

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Order
Order the part
Add parts to your list, then request a quote, a submittal package, or both. Pricing follows by reply.
Standard parts
- 422A15Simple Buoyancy AnchorA15 1.5 in. ID loop; 6 in. long standard · No load rating published
- 422A20Simple Buoyancy AnchorA20 2 in. ID loop; 6 in. long standard · No load rating published
From the data sheet
Notes
- Buoyancy anchor (catalog: Simple Pipe Anchor): keeps pipes from floating during the pour; 6 in. long standard.
- ID and length dimensions can be changed per order.
- Work safe: the installer secures pipes in place prior to rebar.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
