323Cast-in-placeElectrical
Wall Box Hook
Secures wall boxes in place without penetrating the forms; the mud ring compresses against the form for a tight seal.

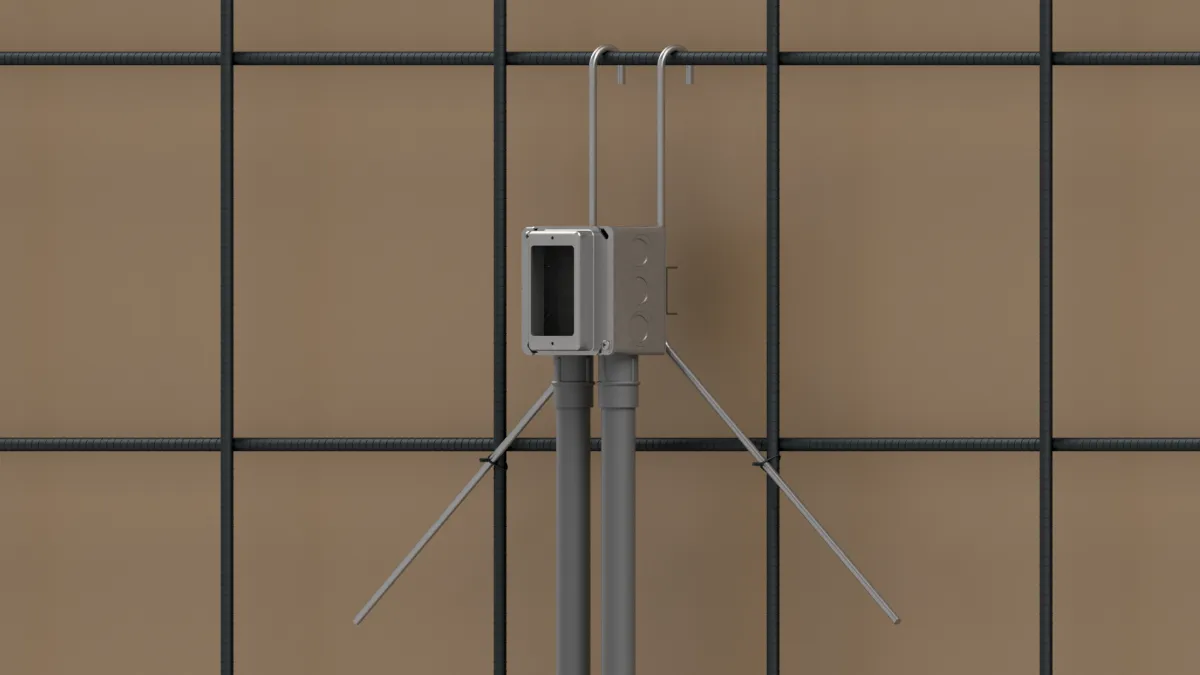

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Order
Order the part
Add parts to your list, then request a quote, a submittal package, or both. Pricing follows by reply.
Standard parts
- 323Wall Box HookOne size; specify quantity. · No load rating published
Installation

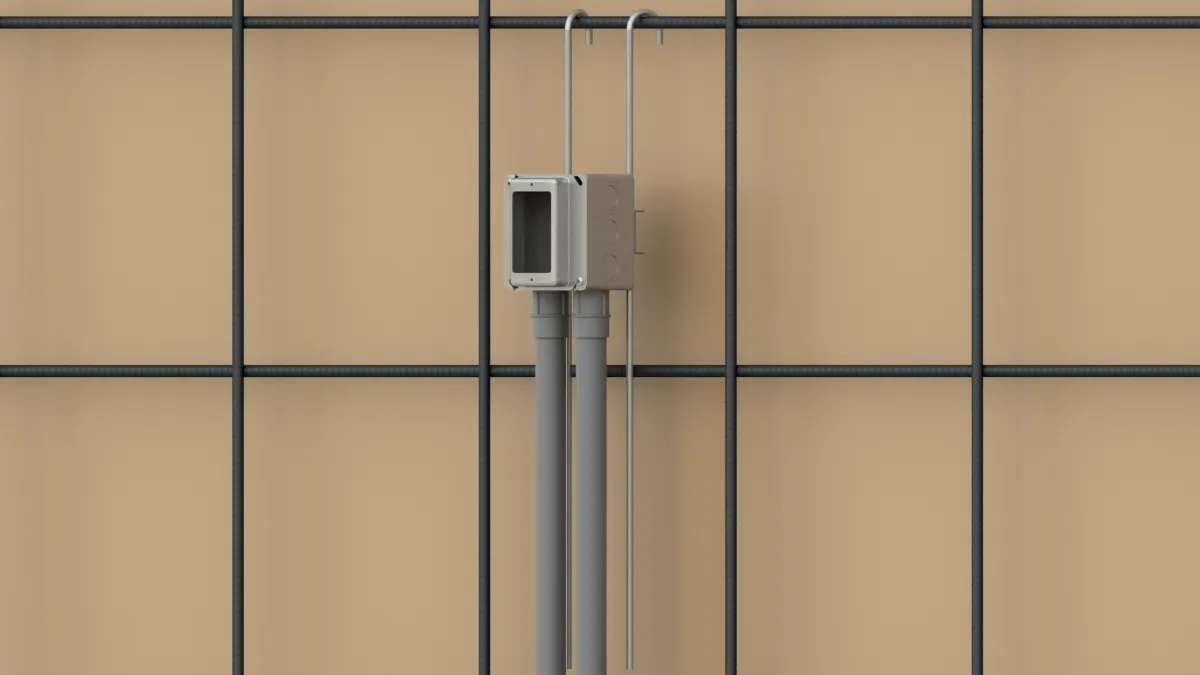

- Screw the box to the plate. Hook the assembly over the rebar and set the elevation of the box.

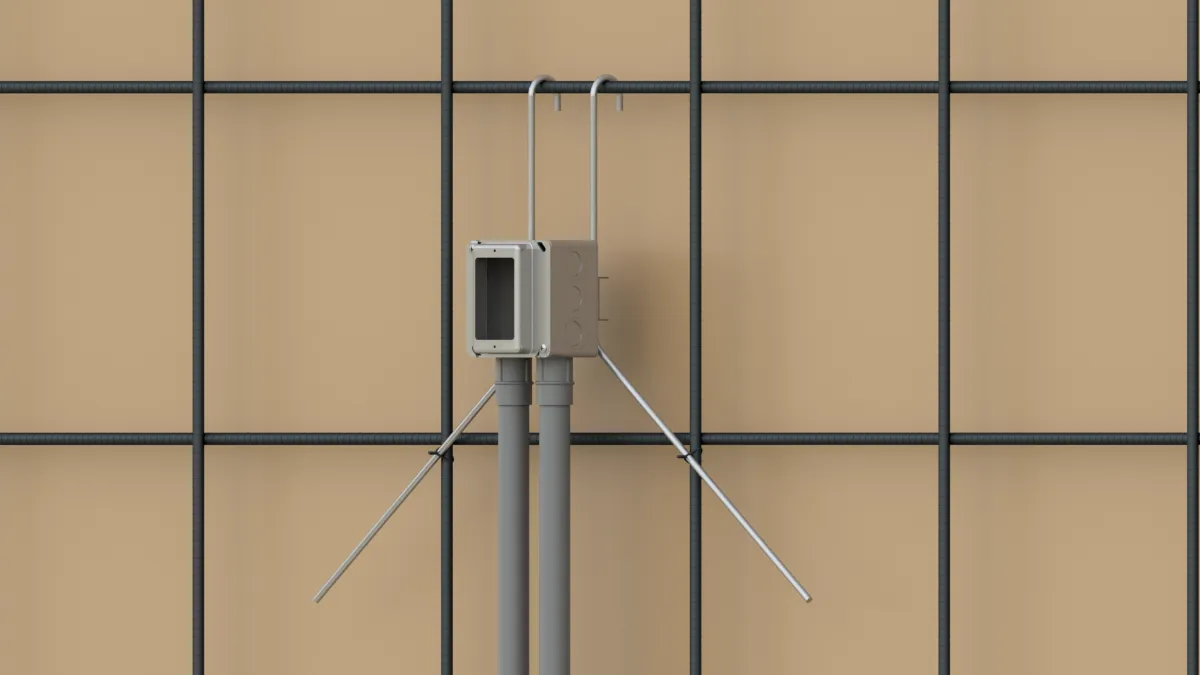

- Bend the legs to fix the elevation and use the wire to secure in place.
From the data sheet
Notes
- Secures wall boxes in place without penetrating the forms; the mud ring compresses against the form for a tight seal.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Electrical: positions PVC conduit, PVC-coated GRC and ENT raceways, boxes and fittings in the pour (NEC 352.30, 344.30, 362.30), secured so they cannot float or shift; spacing per the specifications and the manufacturer.

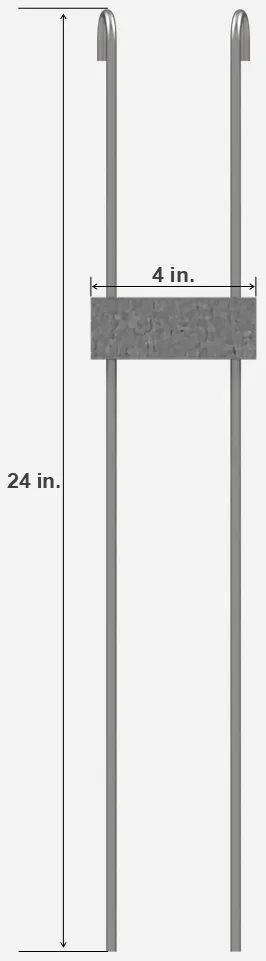

- Drawings not to scale.
